Structural Brace: Service and Repair

31 10 010 Removing and installing/replacing reinforcement plate





Important!
Observe safety instructions for raising the vehicle
Driving without reinforcement plate is not permitted!

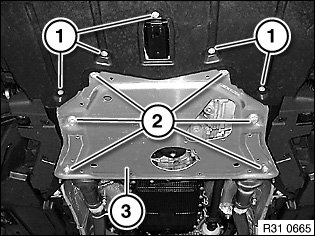

Release bolts (1) for assembly underside protection at front.

Unfasten screws (2).

Remove reinforcement plate (3).

Installation:
Replace screws.

Tightening torque 31 10 2AZ.
