Trunk / Liftgate Hinge: Service and Repair

41 62 050 Removing And Installing/Replacing Left Or Right Hinge For Rear Lid







Read contents of Body, General.

Necessary preliminary tasks:
- Remove tailgate

For stripping and rigging operations, refer to texts on KSD CD (FR number 41 62 050).

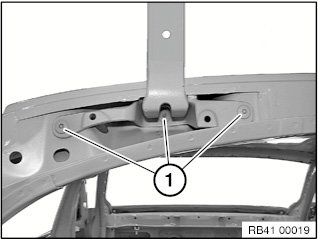

Release screws (1) and remove hinge.

Installation note:
Tightening torque 41 62 3AZ.
Adjust rear lid on the basis of the body gap dimensions.
