Window Shade: Service and Repair

51 16 405 Removing And Installing/Replacing Roller Sun Blind On Side Window Of Left Or Right Rear Door







Necessary preliminary tasks:
- Remove rear door trim panel

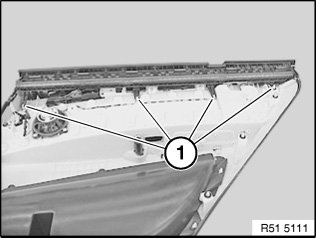

Release 4 bolts (1).

E71, E72:
(1): only 3 screws present.

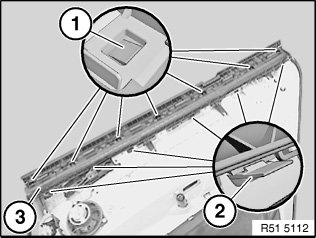

Release catches (1 and 2) and pull off roller sun blind (3) towards bottom.

E71, E72:
(1): only 6 catches present.
(2): only 5 catches present.

Installation:
Catches (1 and 2) must not be damaged.

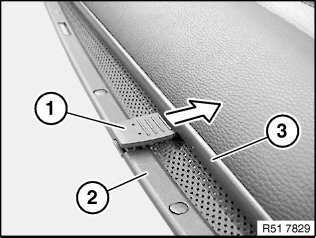

Fold up handle (1) and feed out with roller sun blind (2) through frame (3).
