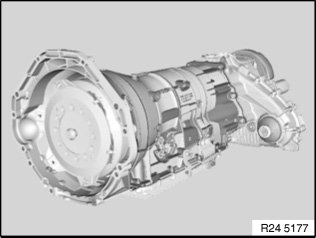

24 00 043 Installing Replacement Transmission (GA6HP26Z)

24 00 043 Installing replacement transmission (GA6HP26Z)





Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 6AZ.

Important!
After completion of work, program transmission control unit.





Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.

Important!
- Before installing replacement transmission, always flush transmission fluid cooler together with lines.





- After completion of work, check transmission fluid level.
- Use only the approved transmission oil
Failure to comply with this requirement will result in serious damage to the automatic transmission
Replacement transmission is supplied filled with transmission fluid





Necessary preliminary tasks:
^ Remove automatic transmission

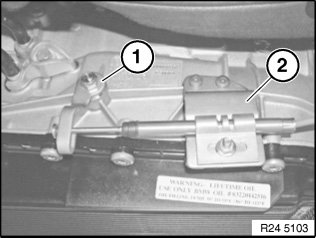

Modify gearshift lever (1).

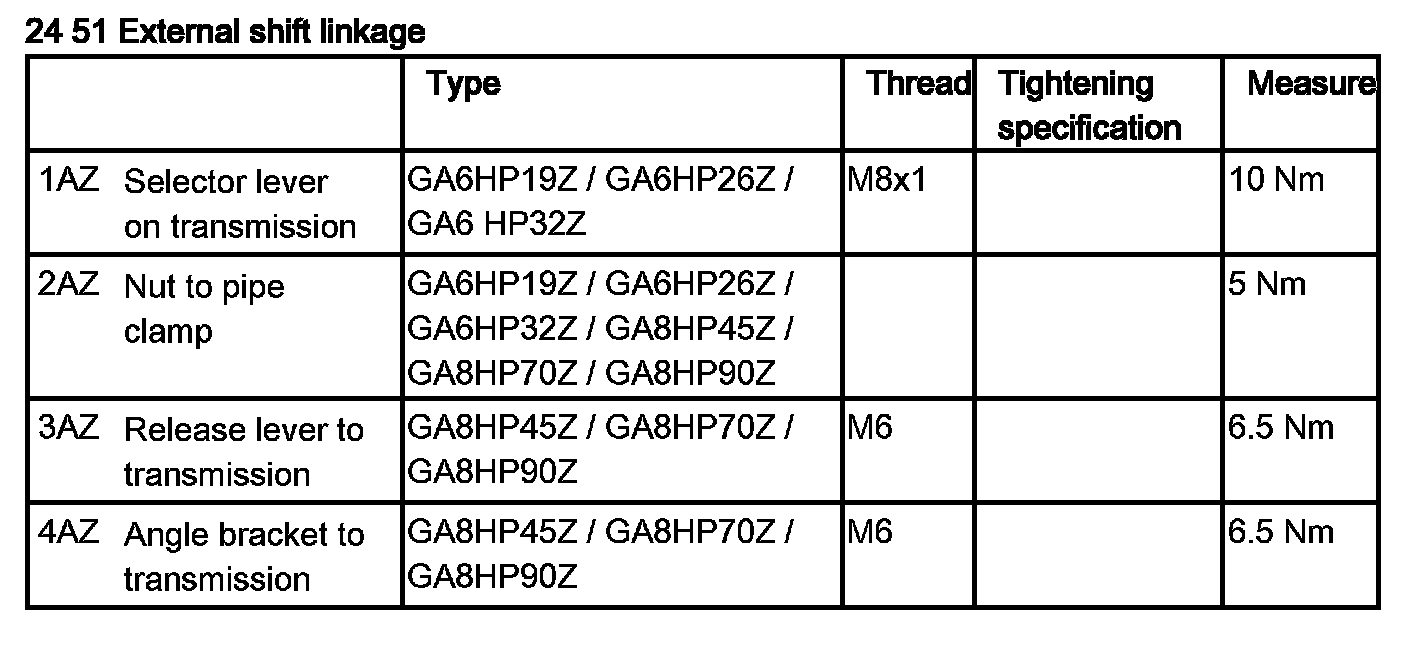

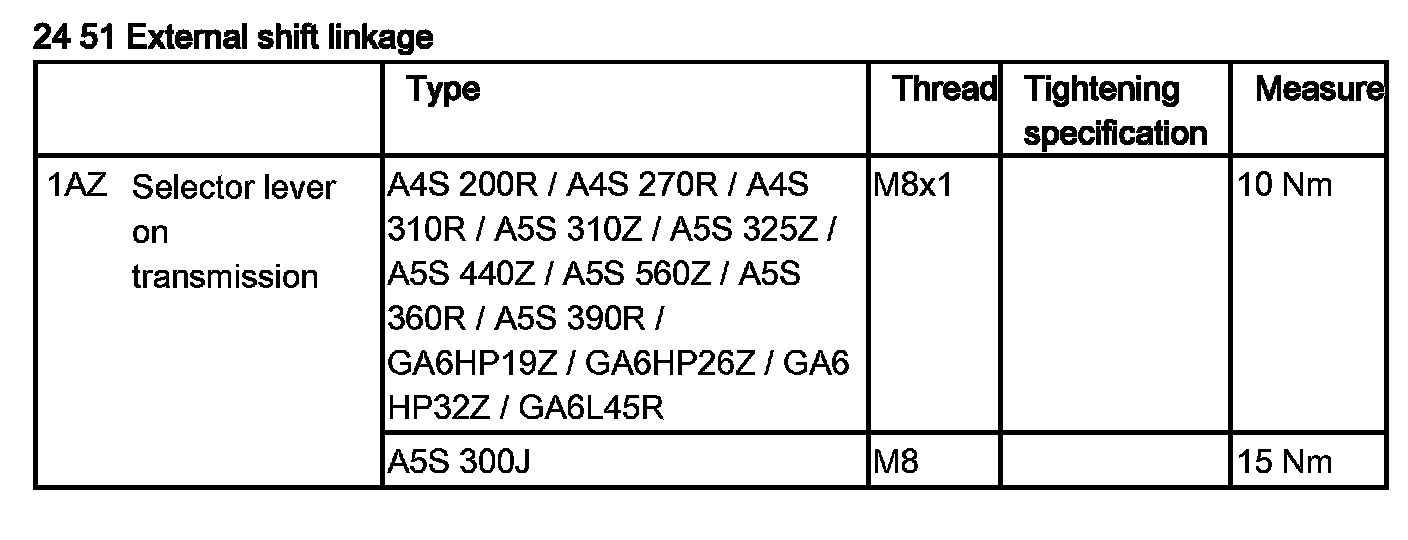

Tightening torque 24 51 1AZ.

Modify clip (2) for cable.








Modify transfer case.

Modify transportation retainers.

Convert all cable holders.

Convert all seal plugs.

Modify protective cap on output shaft.

Important!
After removing transportation lock, secure torque converter against slipping out.

Transmission identification:
- refer to BMW Parts Department.
- On type plate
