66 20 518 Removing and Installing/Replacing A Front Ultrasonic Sensor (Centre)

66 20 518 - Removing and installing/replacing a front ultrasonic transducer (center)





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

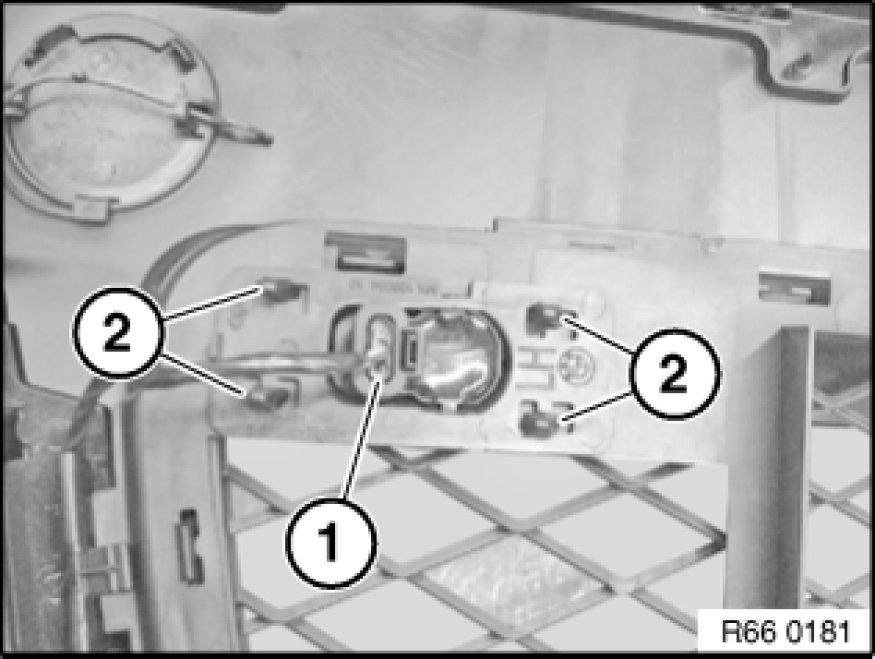

Disconnect plug connection (1) and unclip ultrasonic transducer from retaining lugs (2).

Installation:
Retaining lugs (2) must not be damaged!
Make sure ultrasonic transducer is securely seated.





Installation:

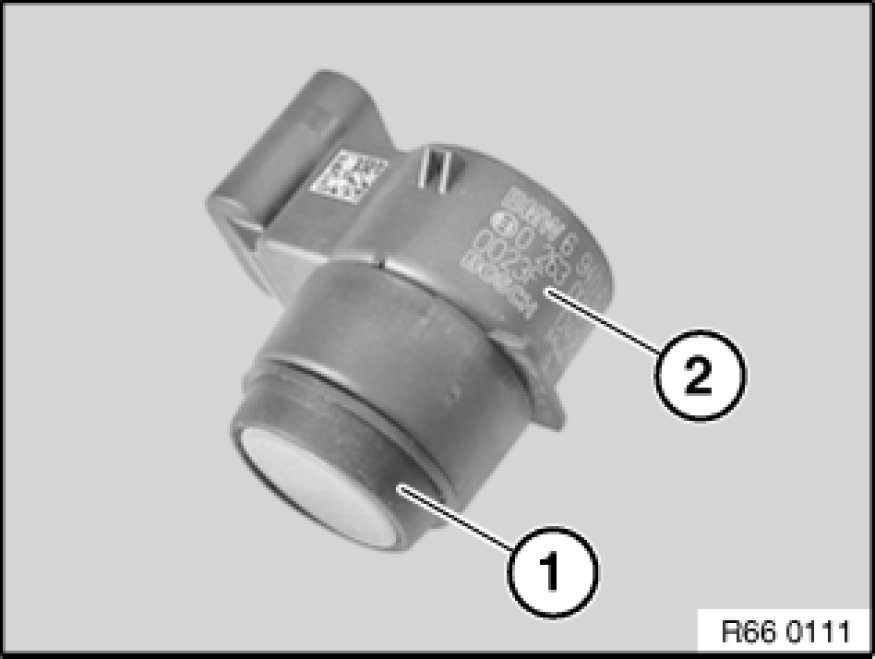

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).
