11 14 085 Removing and Installing Timing Case Cover, Top Right

11 14 085 Removing and installing timing case cover, top right (S63)





Gear case cover, cylinders 1-4:

Necessary preliminary tasks:
^ Remove both solenoid valves on right side

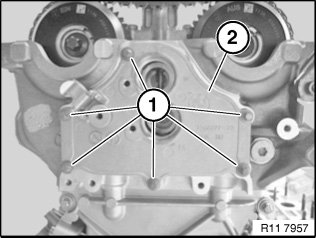

Release screws (1).

Tightening torque 11 14 3AZ.

Remove timing case cover (2).

Installation:
Replace seal.

Assemble engine.
