Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)

51 43 148 Removing And Installing Or Replacing Trim On Left Or Right Door Pillar (Top)







Necessary preliminary tasks:
- Remove panel for door pillar (bottom)

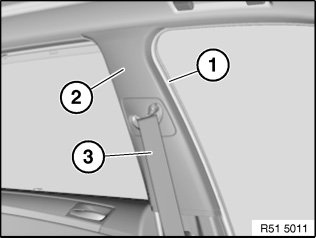

Detach edge protector (1) in area of trim (2).
Pull off trim (2) towards bottom.

Complete removal only:
Release belt screw on front seat.
Feed out belt strap (3) from trim (2).







Installation:

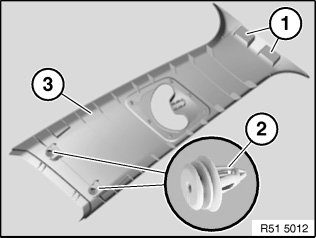

Guides (1) and clips (2) on trim (3) must not be damaged.
