Removing and Installing/Replacing Trim for Left or Right Door Pillar (Bottom)

51 43 150 Removing And Installing Or Replacing Trim For Left Or Right Door Pillar (Bottom)

Special tools required:







Version with fresh-air grille:

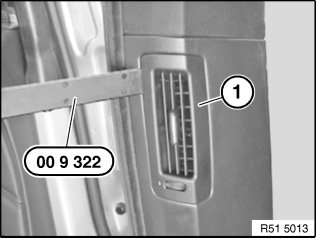

Lift out trim (1) with special tool 00 9 322.







Version with fresh-air grille:

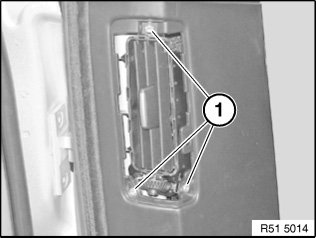

Unscrew screws (1).







Move front seat forwards.
Detach mucket in area of trim (2).

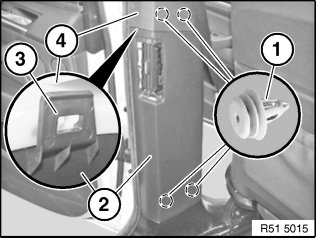

Detach trims (2 and 4) at clips (1) in inward direction.
Detach trim (2) at catch (3) from trim (4).







Installation:

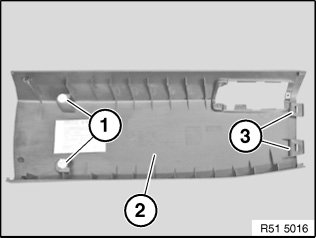

Clips (1) and guides (3) on trim (2) must not be damaged.
