Panel For Luggage Compartment Floor

51 47 128 - Removing and installing/replacing panel for luggage compartment floor

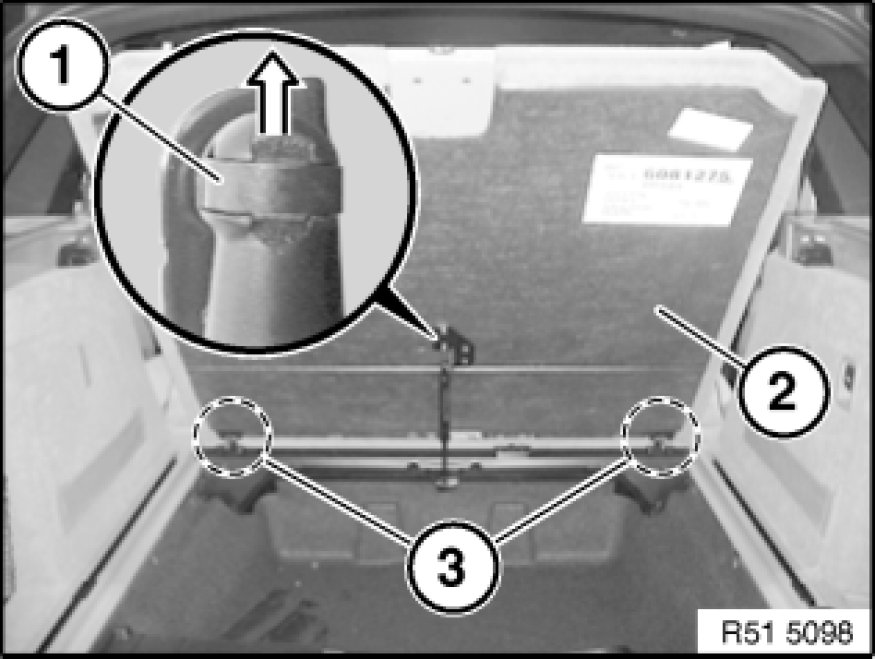

Push retaining spring (1) to end of gas-filled strut.
Remove gas-filled strut from ball head.
Firmly pull luggage compartment floor (2) towards rear and thereby disengage from hinges (3).





Replacement:
Remove handle on panel for luggage compartment floor Handle on Panel for Luggage Compartment Floor.

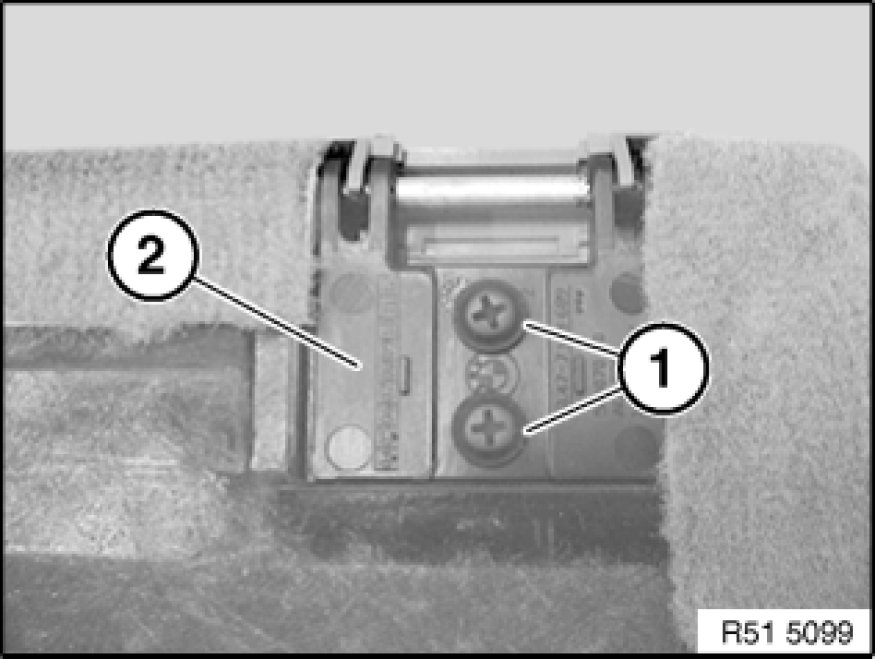

Release screws (1).
Remove hinge (2).

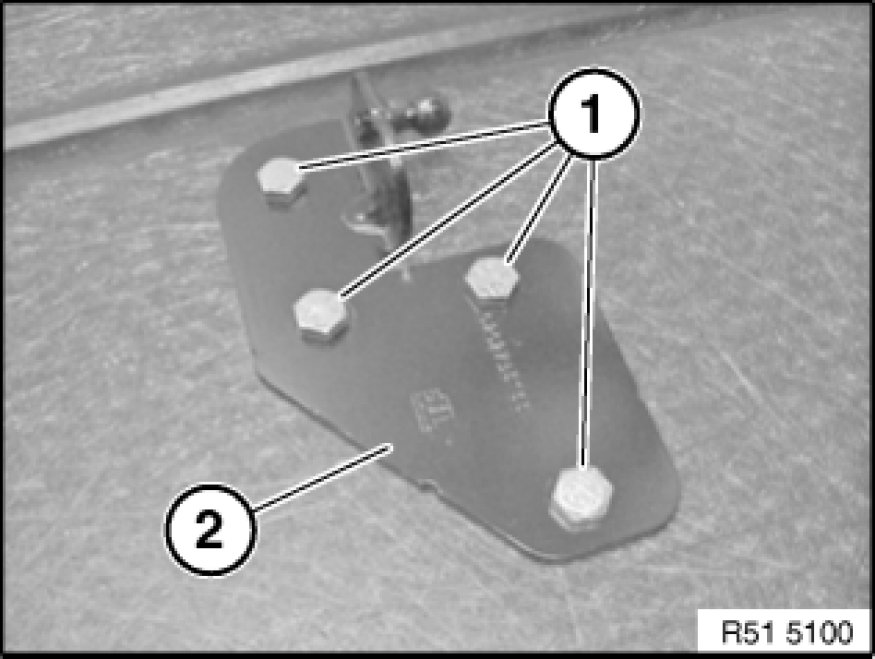

Release screws (1).
Remove retaining plate (2).
