Left Luggage Compartment Wheel Arch Trim (With 3RD Seat Row)

51 47 151 - Removing and installing/replacing left luggage compartment wheel arch trim (with 3rd seat row)





Necessary preliminary tasks:
- Remove storage compartment in luggage compartment Removing and Installing/Replacing Storage Compartment In Luggage Compartment on
- Remove trim on C-pillar at bottom Bottom Left Or Right (3rd Seat Row)
- Remove panel for luggage compartment at bottom 51 47 ... Removing and Installing/Replacing Bottom Left or Right Trim Panel For Luggage Compartment (With 3RD Seat Row)

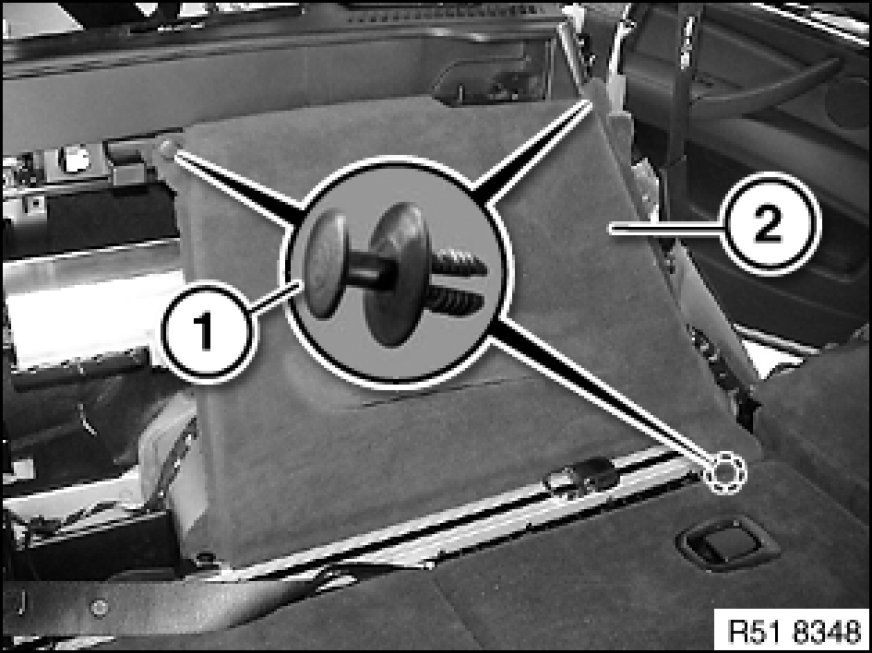

Release clips (1).
Feed out luggage compartment wheel arch trim (2).
