Front Right Luggage Compartment Protective MAT (Security)

51 47 ... - Removing and installing/replacing front right luggage compartment protective mat (Security)





Necessary preliminary tasks:
- Remove lashing rail Left or Right Lashing Rail In Luggage Compartment Floor

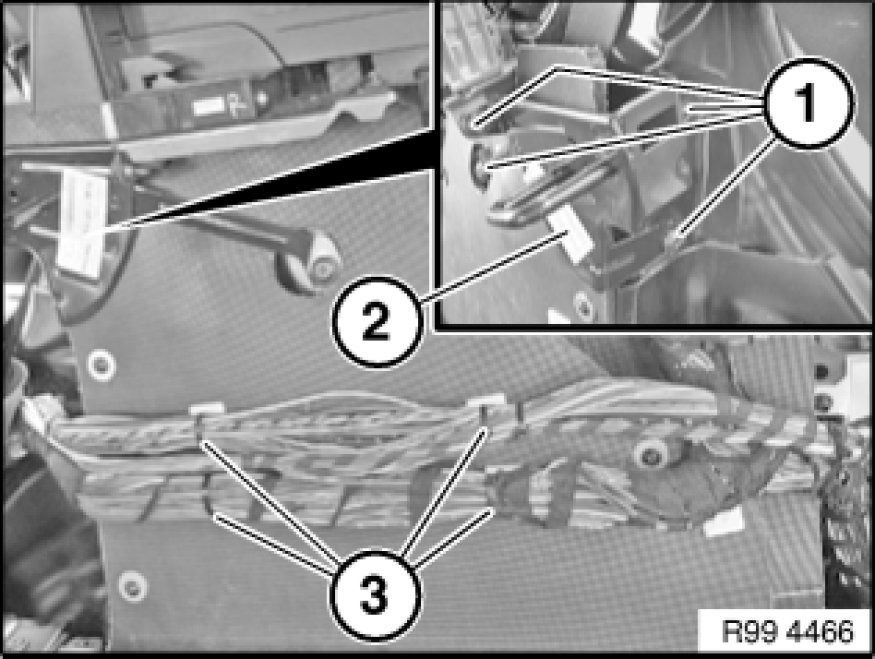

Release screws (1).
Remove rear seat bench arrester (2).
Release cable tie (3).

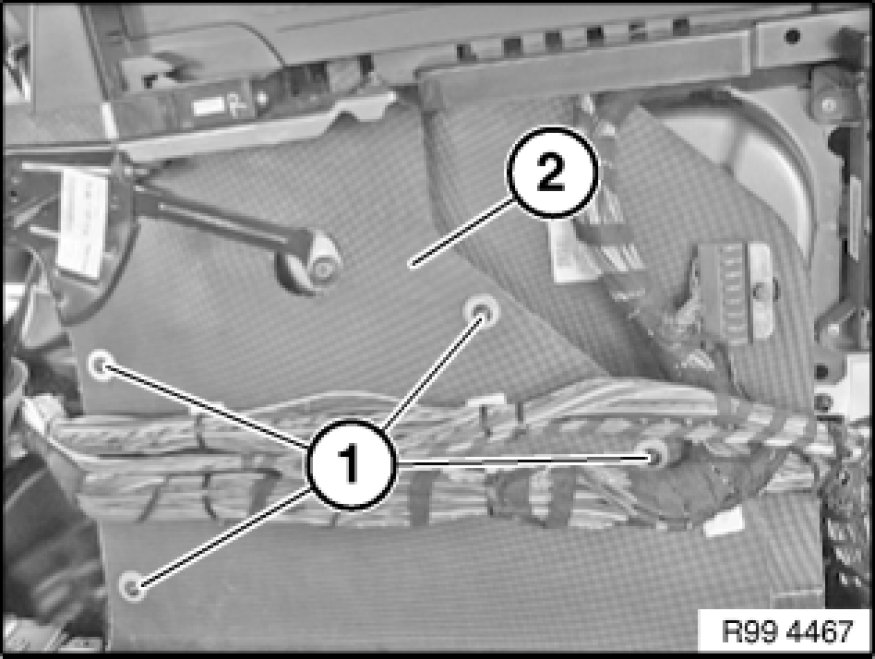

Release screws (1).
Feed out protective mat (2).
