Removing and Installing/Replacing Left or Right Capping In Luggage Compartment

51 47 156 - Removing and installing/replacing left or right capping in luggage compartment





Necessary preliminary tasks:
- Remove panel for roof pillar at rear (C-pillar) Removing and Installing/Replacing Trim Panel For Left or Right Rear Roof Pillar
- Remove panel for roof pillar at rear (D-pillar) Rear Roof Pillar (D-Pillar), Left Or Right
- Remove luggage compartment wheel arch trim

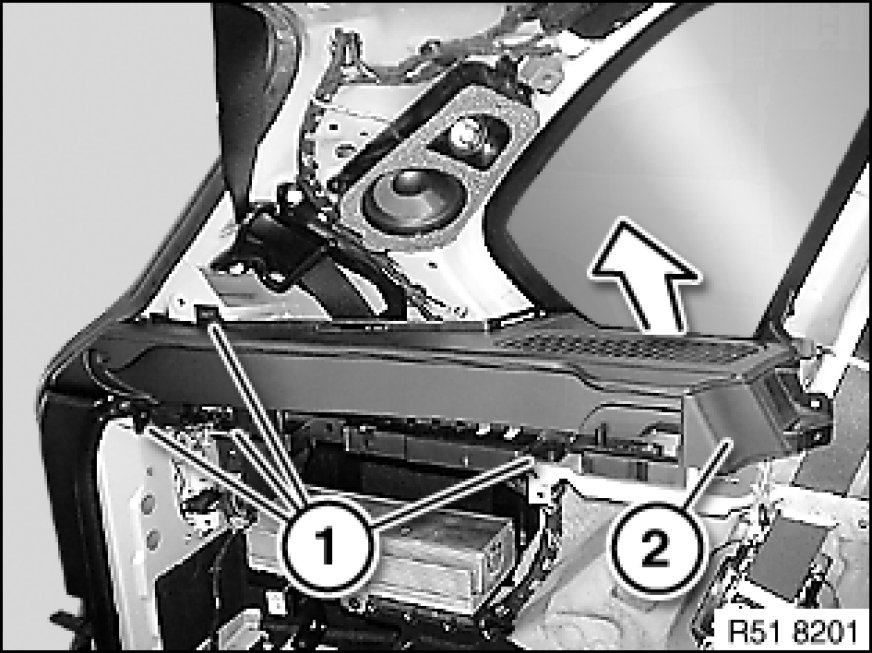

Release screws (1).
Feed out capping (2) towards top.





Installation:

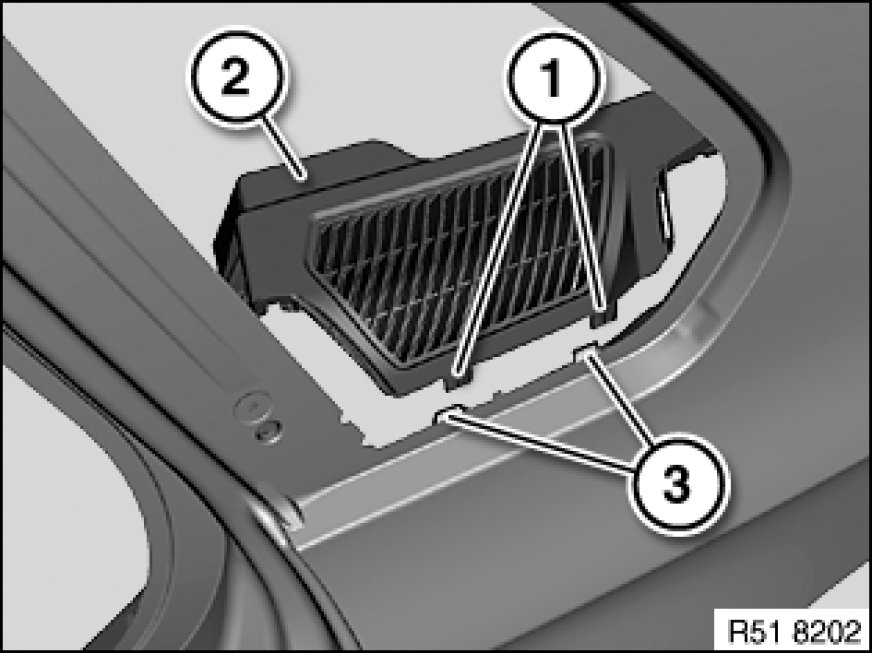

Guide (1) of capping (2) must be correctly inserted into mountings (3) in body.
