12 42 500 Replacing Battery Positive Lead (Between Starter, Alternator and Battery Positive Terminal)

12 42 500 - Removing and installing or replacing battery positive lead (between alternator, starter motor and jump start connection point) (N62TU)





Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Disconnect battery negative lead 61 20 900 Disconnecting and Connecting Battery Negative Lead
- Remove intake hose Service and Repair
- Remove intake filter housing Service and Repair
- Remove intake air manifold

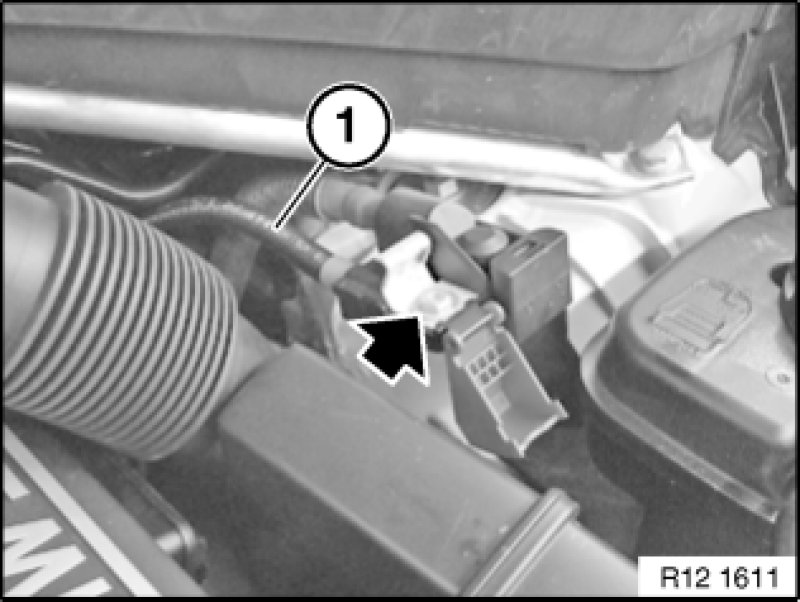

Open cover.
Release nut and disconnect battery positive lead from jump start connection point.
Tightening torque 12 42 3AZ 12 42 Starter Cable.
