Replacing Right Engine Support Arm

22 11 100 Replacing right engine support arm (N62TU)





Necessary preliminary tasks:
^ Clamp off battery
^ Secure engine in installation position
^ Remove reinforcement plate
^ Drain off engine oil
^ Remove heat shields
^ Remove oil dipstick guide tube
^ Remove starter motor
^ Remove right steering cover

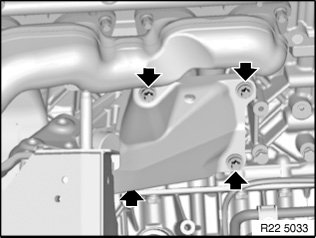

Release screws and engine support arm.

Tightening torque 22 11 3AZ.
