65 83 560 Removing and Installing/Replacing Front Trim For Car Communication Computer

65 83 560 - Removing and installing/replacing front trim for Car Communication Computer





Special tools required:





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge)!

Risk of damage!

Place Car Communication Computer on special tool 12 7 192 (antistatic mat) and earth/ground.





Necessary preliminary tasks:
- Remove Car Communication Computer 65 83 010 Removing and Installing/Replacing Car Communication Computer

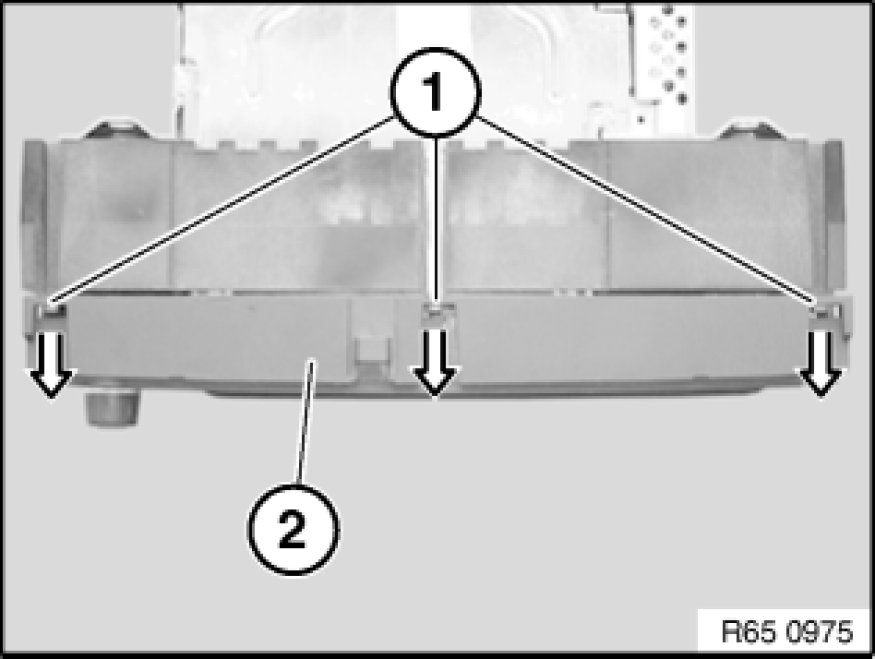

Unlock retainer (1) and carefully raise front trim (2).

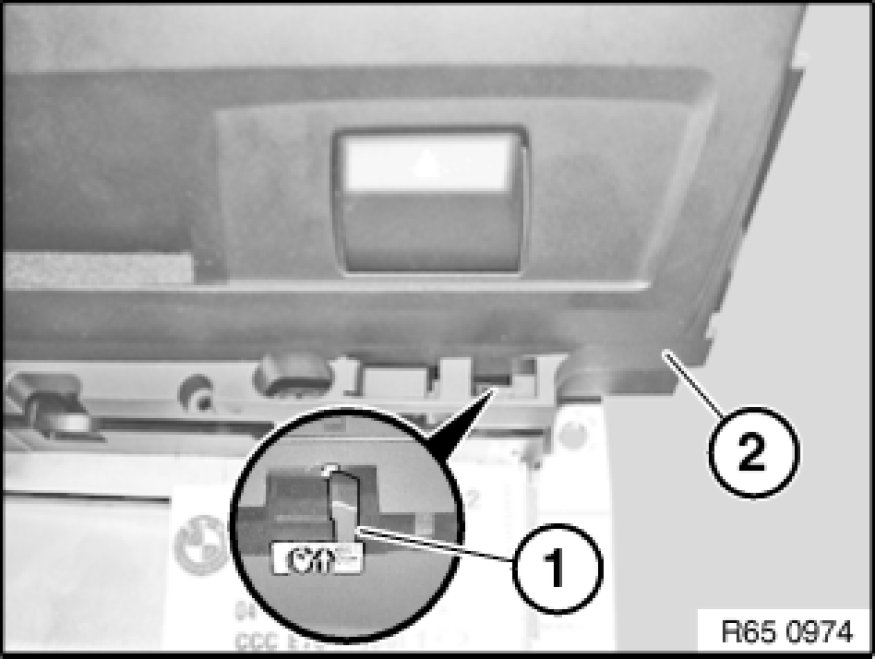

If necessary, unclip retaining lugs (2) and carefully remove front trim (1).





Note:
"LIF" stands for Low Insertion Force.

Open catch of LIF plug (1) in direction of arrow and feed out LIF cable (2).

Remove front trim (3).
