17 51 085 Removing and Installing/Replacing Pipe Between Intercooler and Intake Manifold

17 51 085 - Removing and installing/replacing pipe between intercooler and intake manifold (M57T2)





Necessary preliminary tasks:
- Remove acoustic cover
- Remove underbody protection Removing and Installing / Replacing Front Assembly Underside Protection





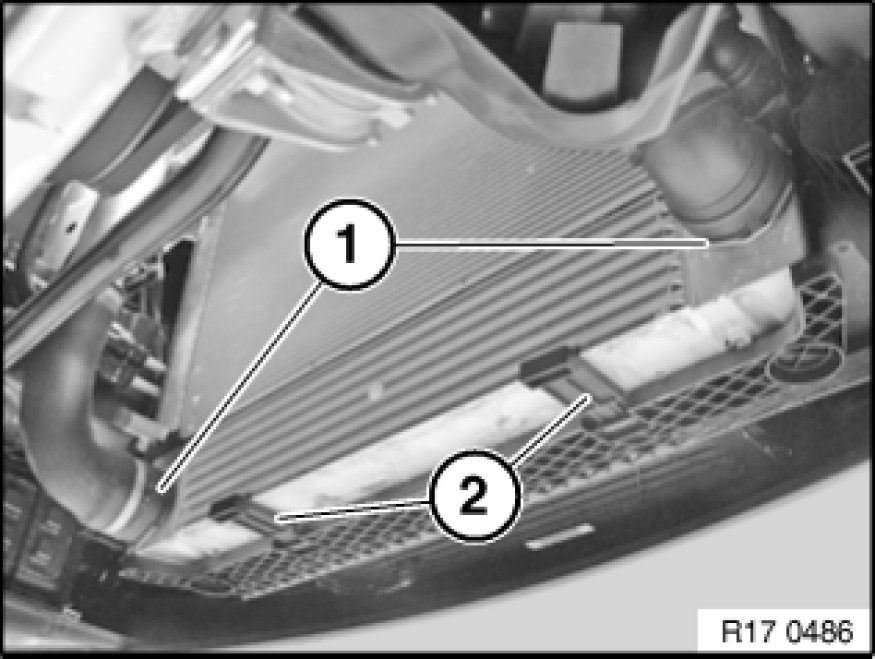

Unclip Bowden cable for engine bonnet/hood actuator from transverse reinforcement (1).
Release screws on both sides
Tightening torque, 51 71 4AZ Specifications
Remove cross-brace (1).

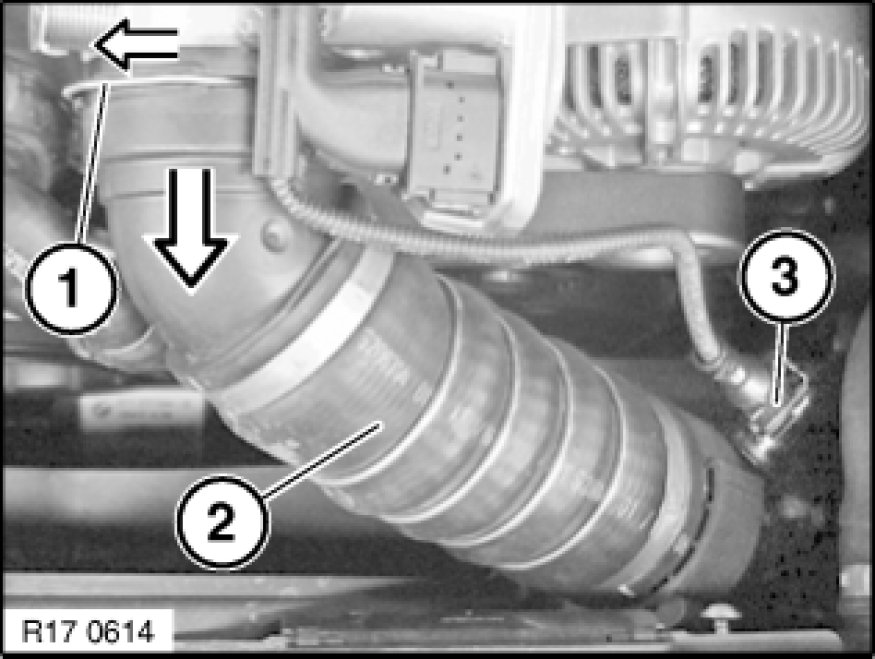

Press out retainer (1) from charge air hose (2) in direction of arrow.
Unlock plug (3) from temperature sensor and detach.
Pull down charge air hose in direction of arrow.

Installation:
Lubricate connection for charge air hose with slip paste and firmly connect hose. Retainer must audibly snap into place.





Release charge air hose (1 left) on intercooler.

Installation:
Lubricate connection for charge air hose with slip paste and firmly connect hose. Retainer must audibly snap into place.





Assemble engine.
