16 19 020 Removing and Installing/Replacing Active Reservoir

16 19 020 Removing And Installing/Replacing Active Reservoir







IMPORTANT:
Ensure adequate ventilation in the workbay.
Avoid skin contact (wear gloves).
Avoid eye contact (safety goggles).
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.







IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation.
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning (see ETP Electronic Parts Catalogue WAYPALL L20 cleaning cloths).
Close connections and lines.
Thoroughly clean special tool with water after each use.







Necessary preliminary work:
- Draw off urea/water mixture
- Remove wheel arch panel front section on right
- Remove ornamental grille in front right bumper trim







NOTE: For purposes of clarity, graphic shows bumper trim removed.

Release mounting (1).
Release plastic nuts (2).

Installation note:
Check plastic nuts, replace if necessary.
Tightening torque 16 19 2AZ.
Swing out bracket (3) with brake air duct (4).







Disconnect plug connection (1).
Turn plug connection (2) a 1/4 turn and remove.







Disconnect repumping line from passive reservoir (1).
Disconnect metering line (2).

Installation note:
Check latch mechanism of lines (1 and 2) by pulling.







Disconnect filler line (1) and tank ventilation line (2).

Installation note:
Check latch mechanism of lines (1 and 2) by pulling.
Unclip lines from bracket (3).







Release screws (1).

Installation note:
Tightening torque 16 19 3AZ.







Secure active reservoir (1) against falling off.
Unscrew nuts (2).

Installation note:
Tightening torque 16 19 4AZ.
Remove active reservoir (1) and feed out filler line.







Replacement:
Modify evaluation unit.
Modify power switch.

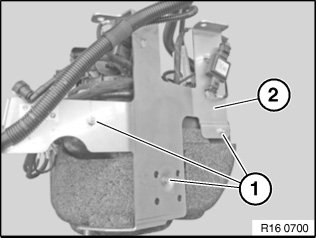

Unscrew nuts (1).
Tightening torque 16 19 10AZ.
Unscrew holder (2).

IMPORTANT: Risk of damage. Reinstall washers under holder (2) on tank side without fail.

Modify SCR delivery module.
Modify wiring harness.
Modify insulation.
Modify filler vent line.

Installation note:
Replace hose clamp.
Tightening torque 16 19 9AZ.
