16 19 004 Removing and Installing/Replacing Filler Pipe With Filler Neck on Active Reservoir

16 19 004 Removing And Installing/Replacing Filler Pipe With Filler Neck On Active Reservoir







IMPORTANT:
Ensure adequate ventilation in the workbay.
Avoid skin contact (wear gloves).
Avoid eye contact (safety goggles).
Urea/water mixture can escape when components carrying urea/water mixture are released. Have a collecting vessel ready.
Observe country-specific waste disposal regulations.







IMPORTANT:
Maintain conditions of absolute cleanliness.
Connections and covers of lines carrying urea/water mixture must be cleaned thoroughly with water after each removal or before each installation.
Thoroughly clean the working area with water after repair work.
Use fluff-free cloths for cleaning (see ETP Electronic Parts Catalogue WAYPALL L20 cleaning cloths).
Close connections and lines.
Thoroughly clean special tool with water after each use.







Necessary preliminary work:
- Remove wheel arch panel front section on right

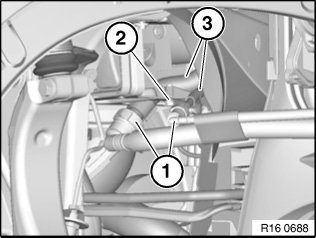

Release quick-connect couplings (1).

Installation note:
Check latch mechanism of quick-connecting couplings (1) by pulling.
Unclip lines for filler neck (3) from holder (3).

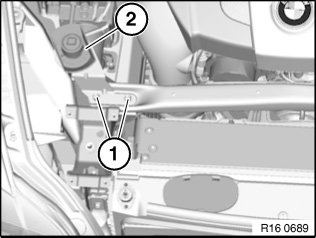

Release screws (1).
Remove filler pipe with filler neck (2).
