64 22 ... Removing and Installing Windscreen Air Duct




64 22 ... - Removing and installing windshield air duct





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim

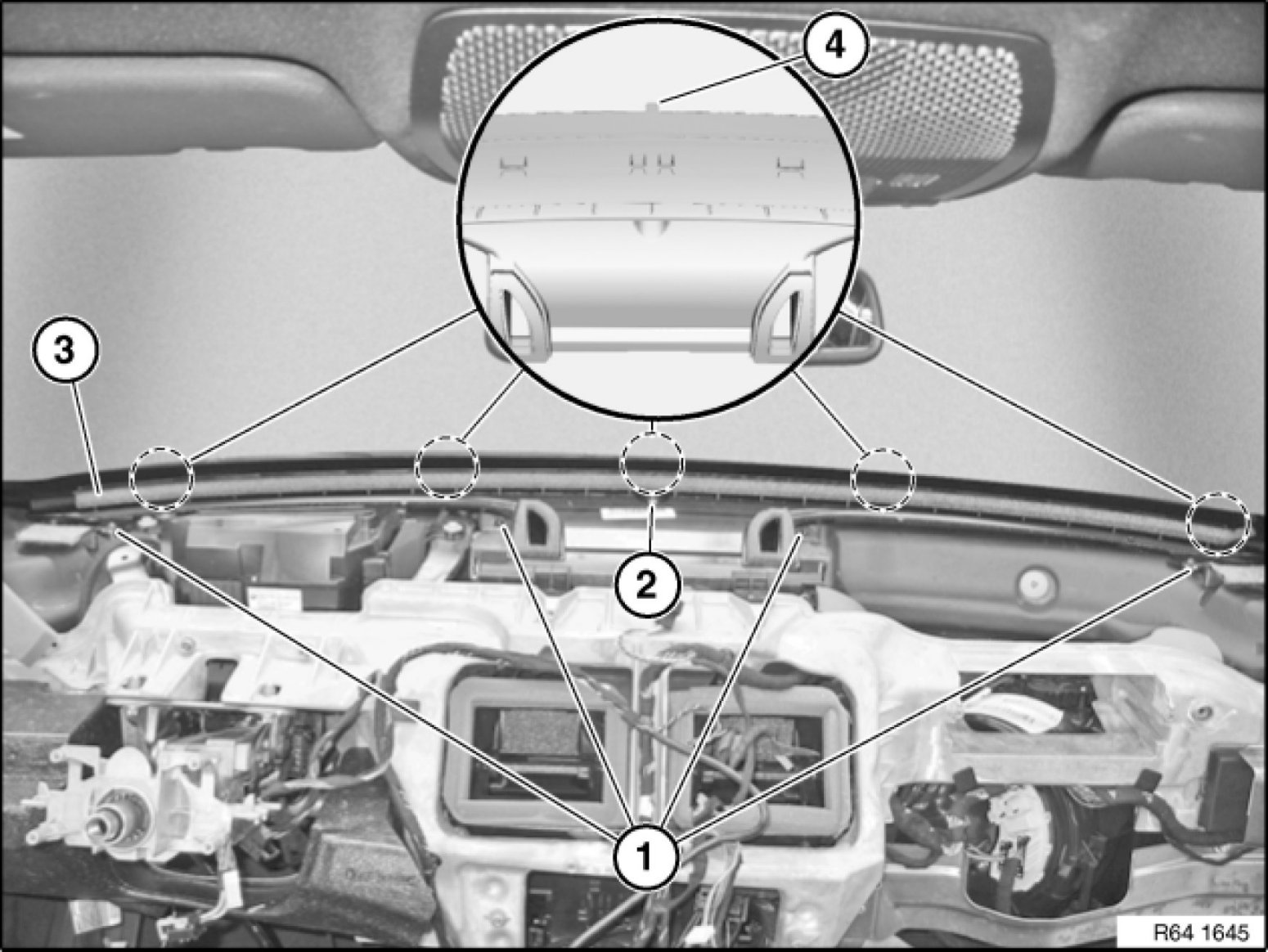

Release screws (1) and (2) and remove windshield air duct (3).

Installation:
Make sure guides (4) are correctly seated in associated body openings.
