13 .. ... Removing Intake Port

13 .. ... M57T2 Remove The Intake Port (M57T2 with SCR)







Necessary preliminary work:
- Remove acoustic cover

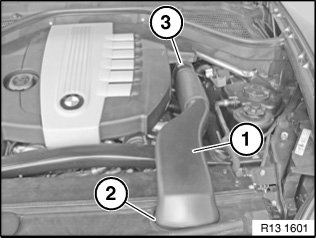

Unclip intake port (1) from front air duct (2).
Press the retaining lugs (3) in and remove the intake port from the front.
