Oil Line: Service and Repair

11 42 260 Oil return cover





Important!
Risk of fire.
In the event of oil leakage in the Vee, the leakage oil may be ignited on hot components.





Necessary preliminary work:
^ Remove both exhaust turbochargers
^ Remove heat shield at bottom.

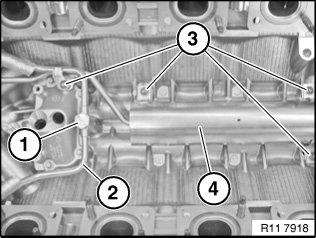

Release banjo bolt (1).

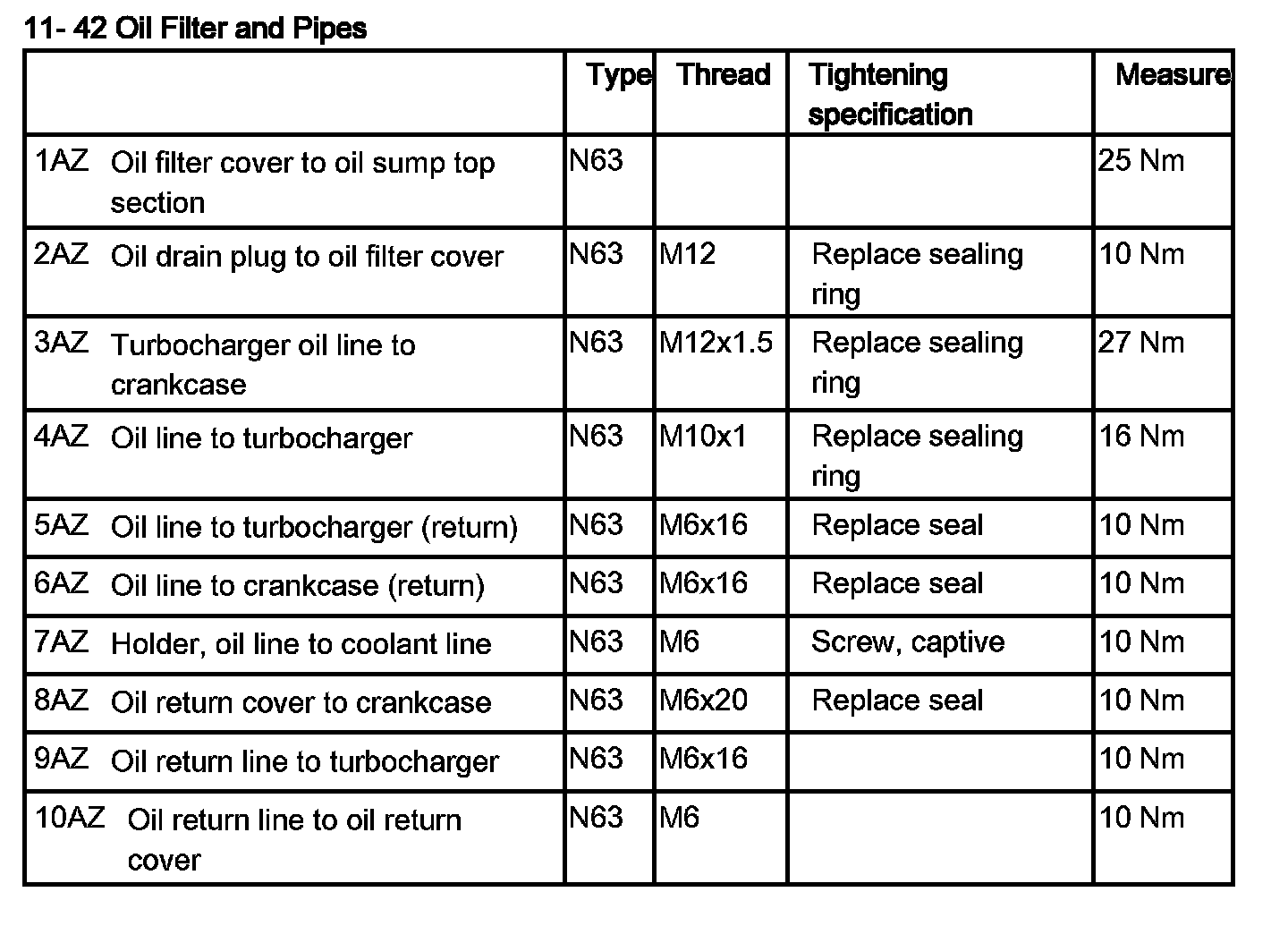

Tightening torque: 11 42 10AZ.

Release screws (3).

Tightening torque: 11 65 6AZ.





Place vacuum reservoir (4) to one side.





Release screws (1).

Tightening torque: 11 42 8AZ.

Remove oil return cover (2).

Installation Note:
Replace oil return cover.

Replace both O-rings.





Assemble engine.
