Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (M57T2)





Necessary preliminary tasks:
- Secure engine Securing Engine In Installation Position in installation position
- Remove reinforcement plate Service and Repair
- Remove heat shields
- Release grounding strap from engine support arm

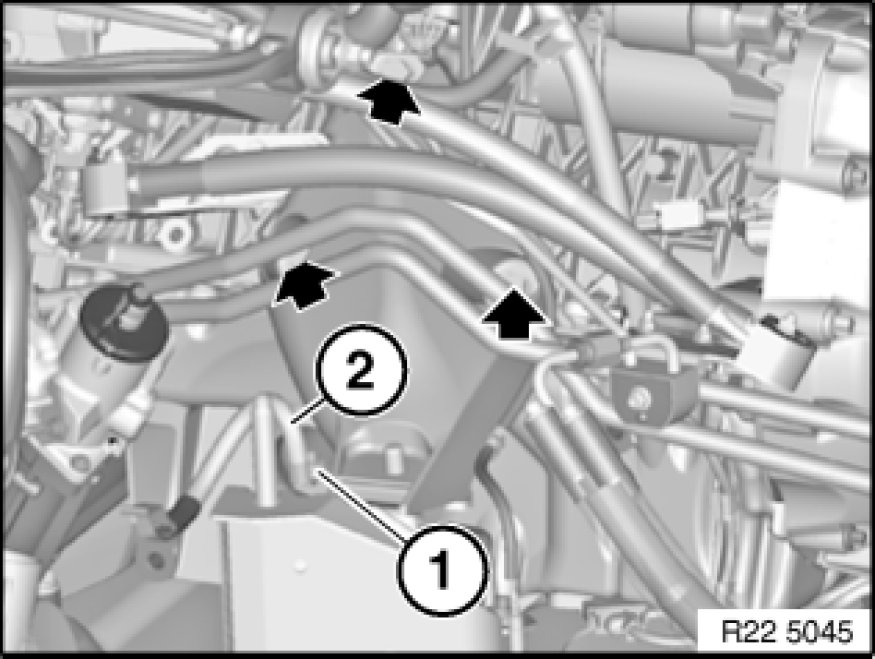

Unscrew nut (1).
Release grounding strap (2) from engine support arm.
Release screws and engine support arm.
Tightening torque 22 11 3AZ Specifications.
