Replacing Tensioning Device for Alternator Drive Belt



11 28 020 Replacing Tensioning Device For Alternator Drive Belt (M57T2-SCR)







Necessary preliminary tasks:
- Remove drive belt

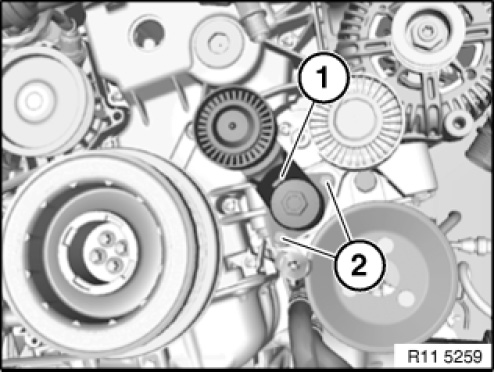

Release screws (2) and remove tensioning pulley (1) towards front.
Tightening torque 11 28 2AZ.
