Remote Control and Aerial

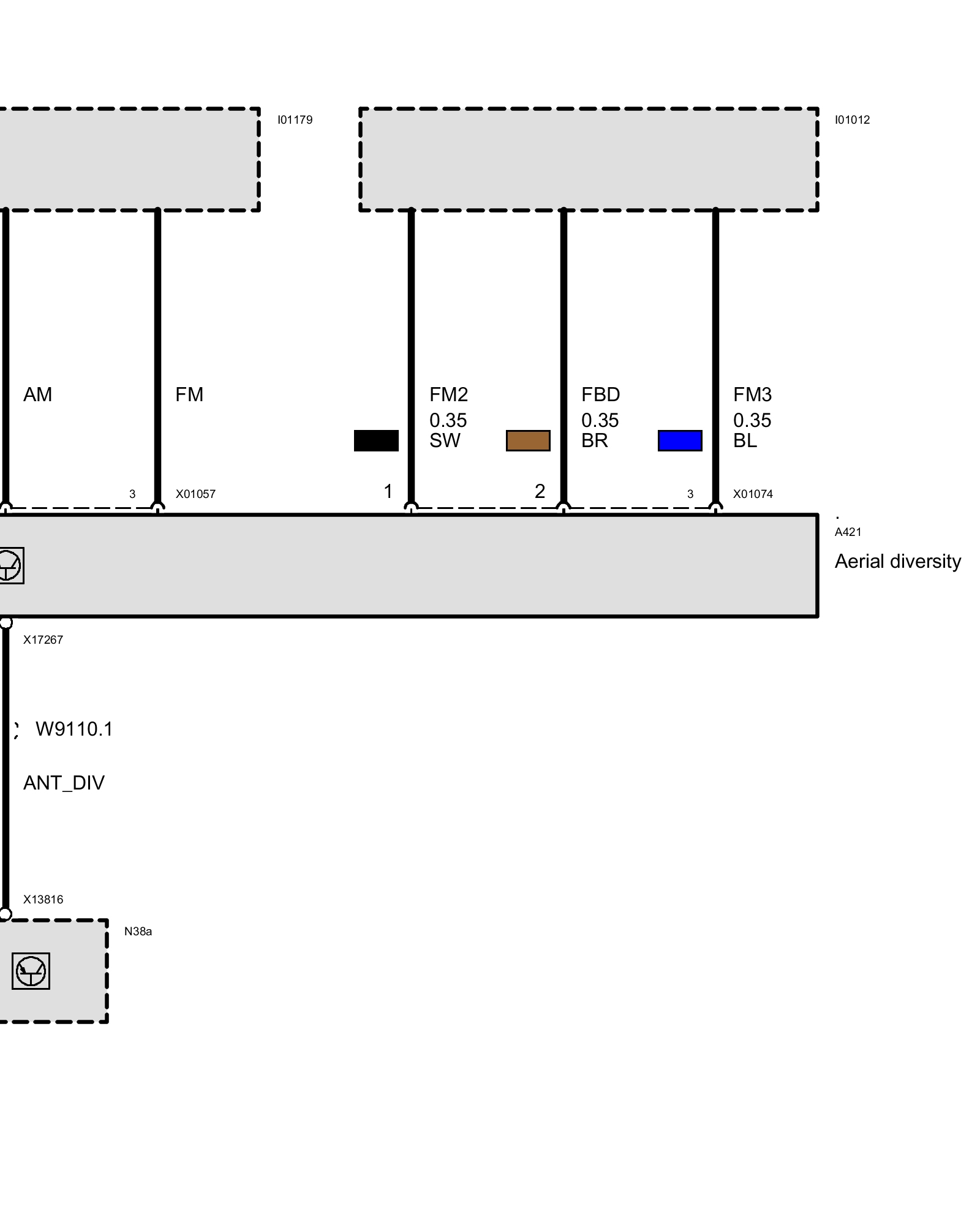

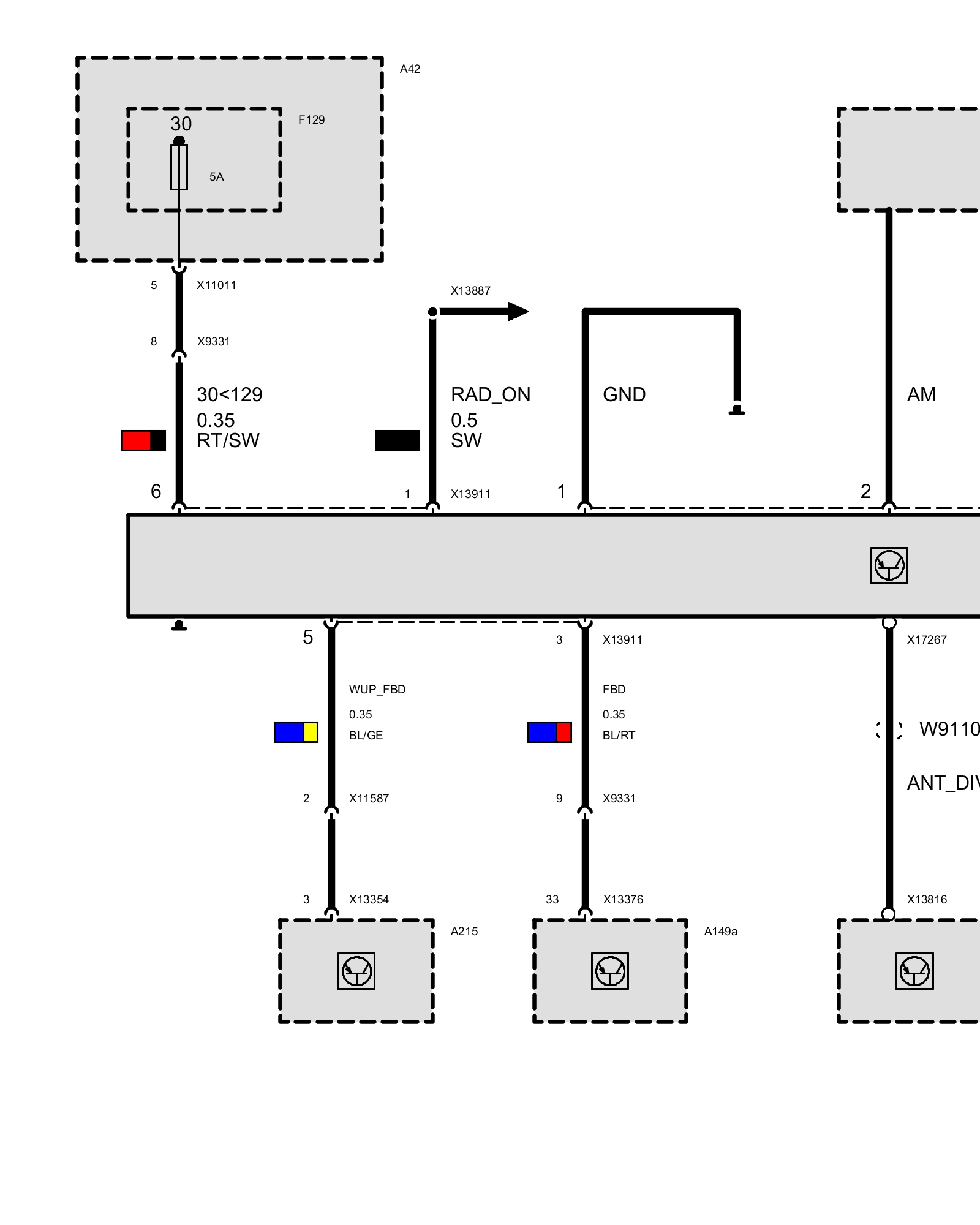

A421 Aerial Diversity


Up to 2007








As of 2007, Up to 2009








As of 2009
