Replacing Right Engine Support Arm

22 11 100 - Replacing right engine support arm (N52K)





Necessary preliminary tasks:
- Secure engine Securing Engine In Installation Position in installation position
- Remove reinforcement plate Service and Repair
- Remove heat shields

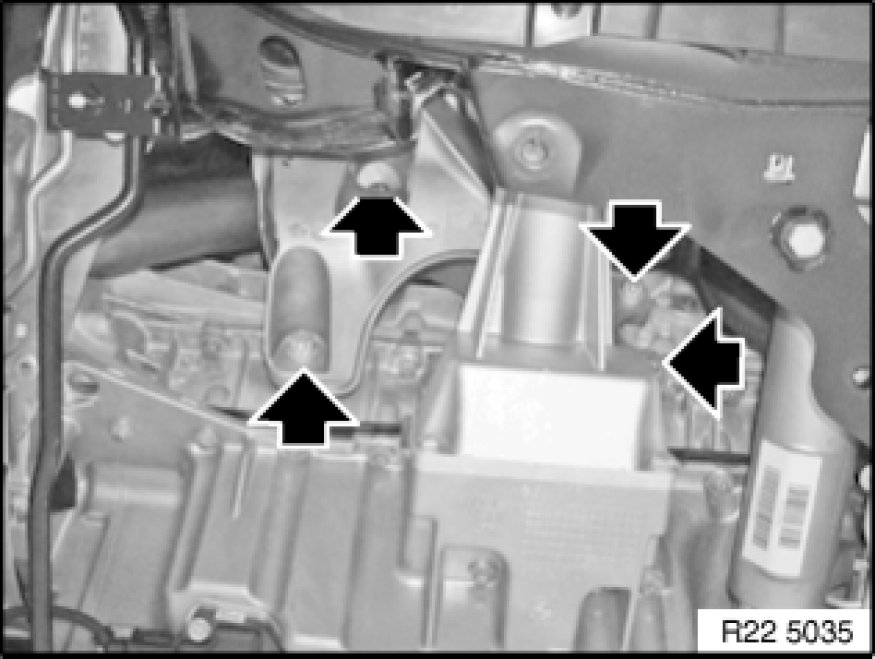

Release screws and engine support arm.
Tightening torque 22 11 3AZ Specifications.
