Replacing Left Engine Support Arm

22 11 110 - Replacing left engine support arm (N52K)





Necessary preliminary tasks:
- Secure engine Securing Engine In Installation Position in installation position
- Remove reinforcement plate Service and Repair
- Remove upper section of microfilter housing 64 31 081 Removing and Installing/Replacing Microfilter Housing
- Remove heat shields
- Remove manifold.
- Remove air ducts





Release screw (1).
Release bracket (2) with oil line.





Release nut and remove grounding strap.

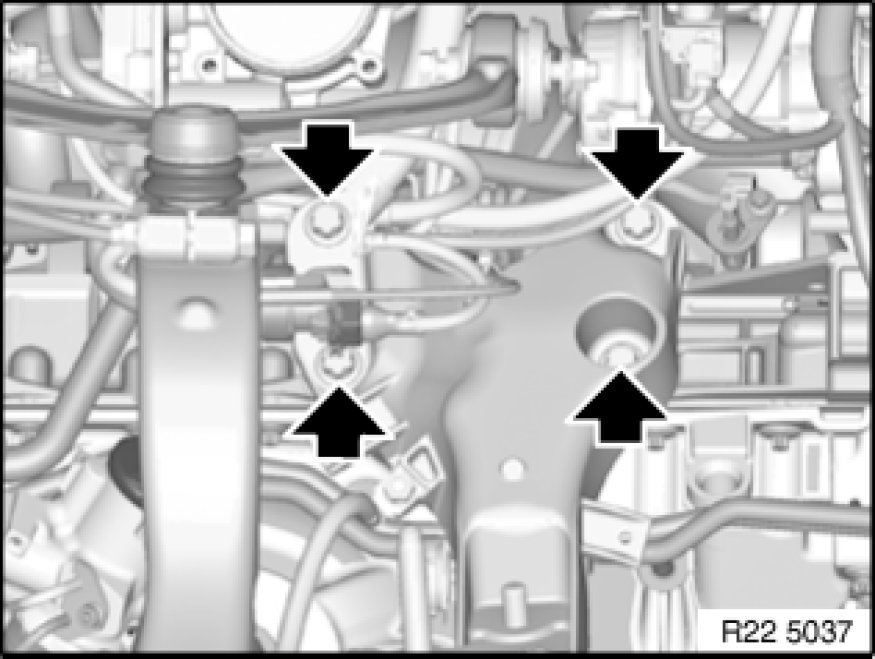

Release screws and engine support arm.
Tightening torque 22 11 3AZ Specifications.
