Convertible Top Deck Lid: Service and Repair

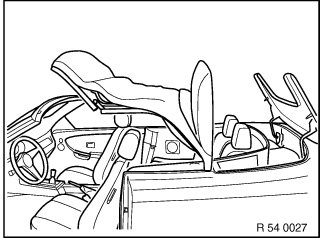

51 00 ... Service position of convertible top compartment lid







Special tools required:
- 54 3 120







WARNING: Danger of locking in position.







Open convertible top compartment lid until all hydraulic cylinders are completely extended.







Open convertible top compartment.

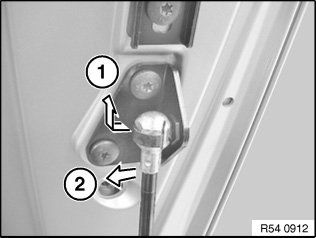

Removing hydraulic cylinder at top right or left:
1. Raise retaining spring and push to end of hydraulic cylinder.
2. Remove hydraulic cylinder (2) from ball end.

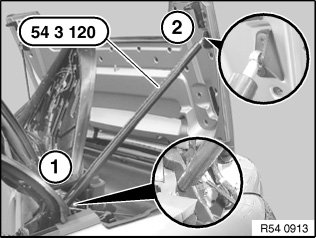

1. Place special tool 54 3 120 in convertible top frame.
2. Clip ball socket of special tool on ball stud.

NOTE: If necessary, remove second hydraulic cylinder at top right or left.
