Twist Out

11 22 513 - Replacing roller bearing for dual-mass flywheel





Special tools required:






Note:
Flywheel removed!

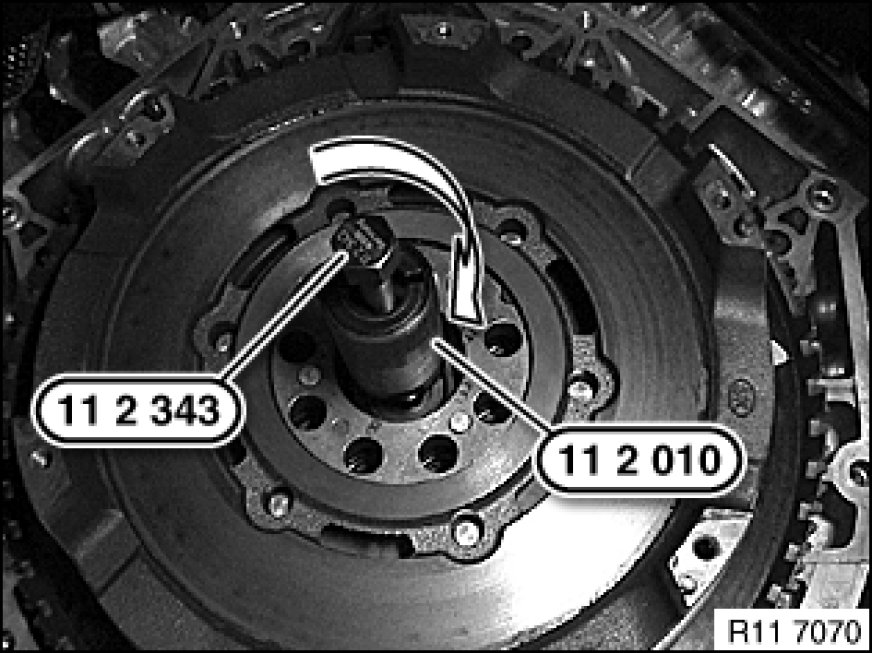

Position special tool 11 2 010 in roller bearing.

Twist out roller bearing with special tool 11 2 343.

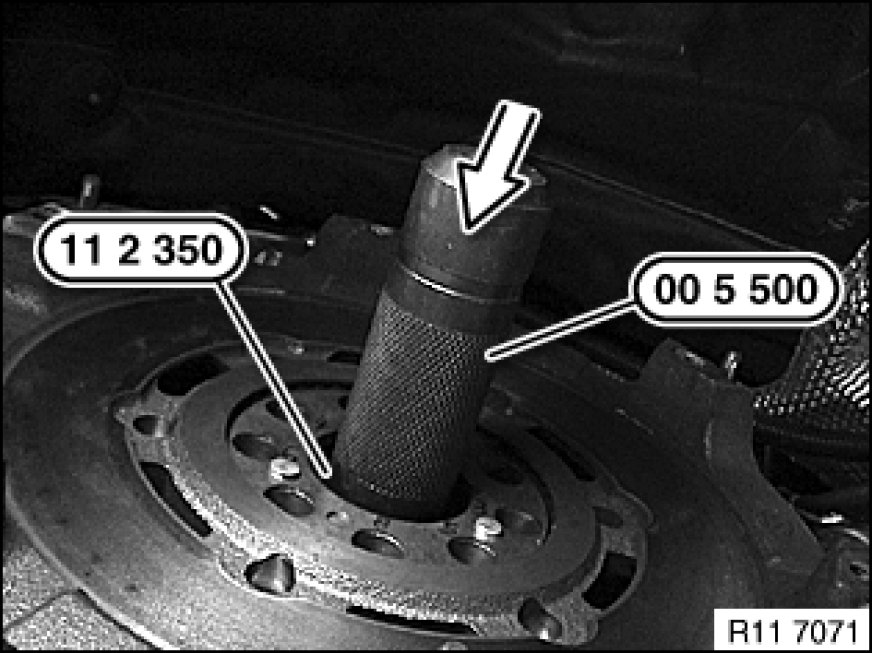

Assemble special tools 11 2 350 and 00 5 500.

Drive in roller bearing with special tools 11 2 350 and 00 5 500 in direction of arrow as far as it will go.





Assemble engine.
