Home >> BMW >> 2010 >> M3 Convertible (E93) V8-4.0L (S65) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram >> Automatic Engine Start-Stop (MSA Automatic Engine Start-Stop)

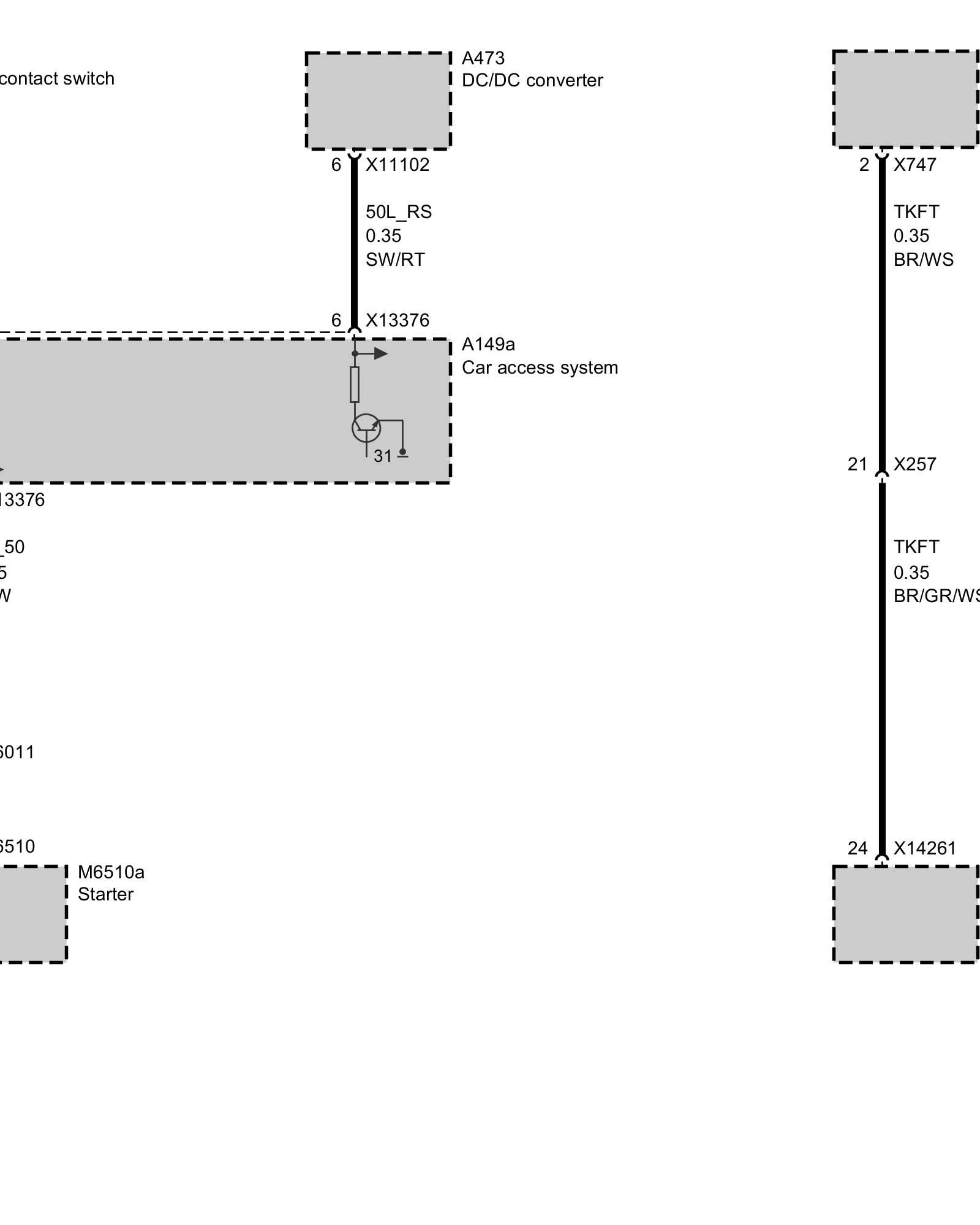

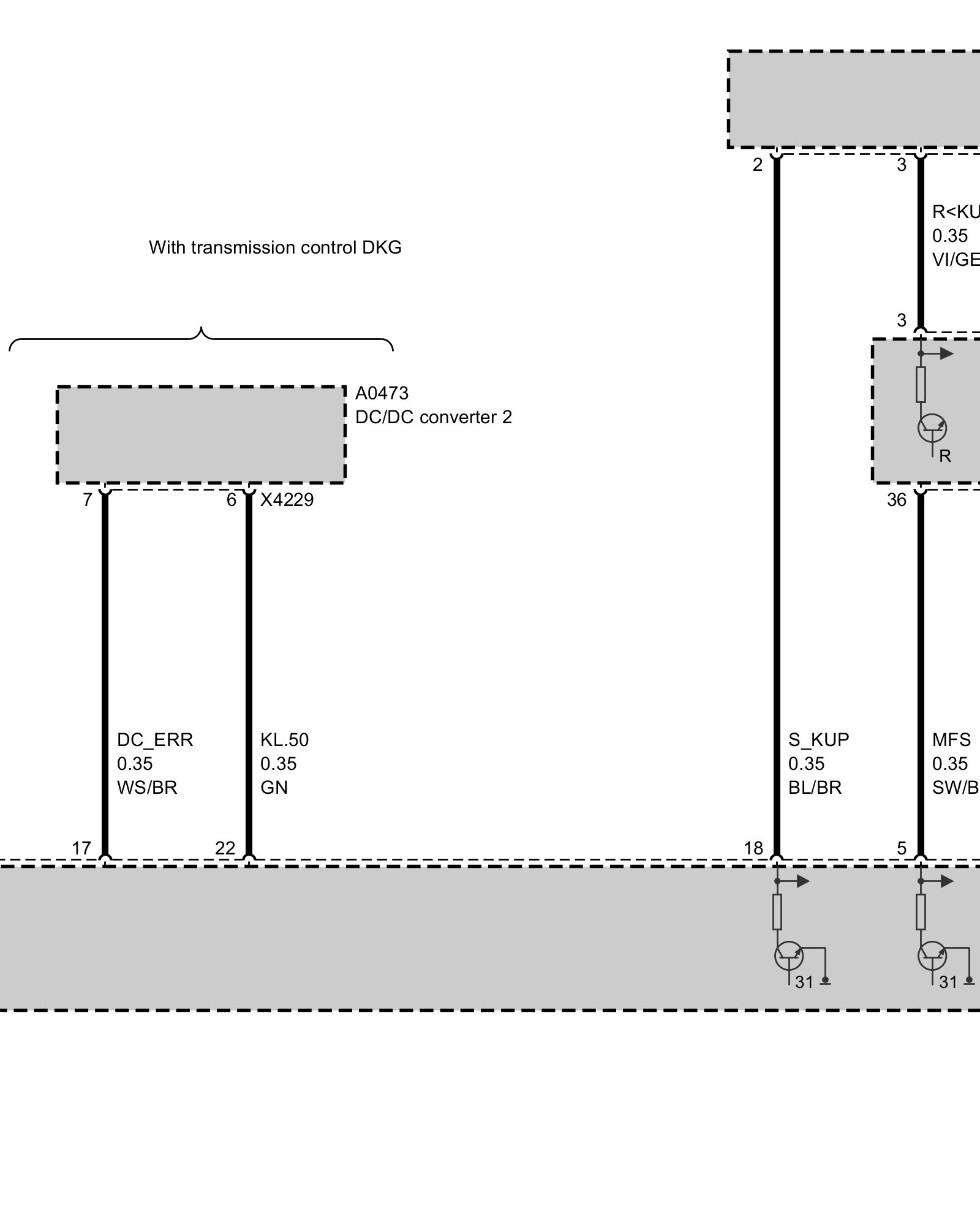

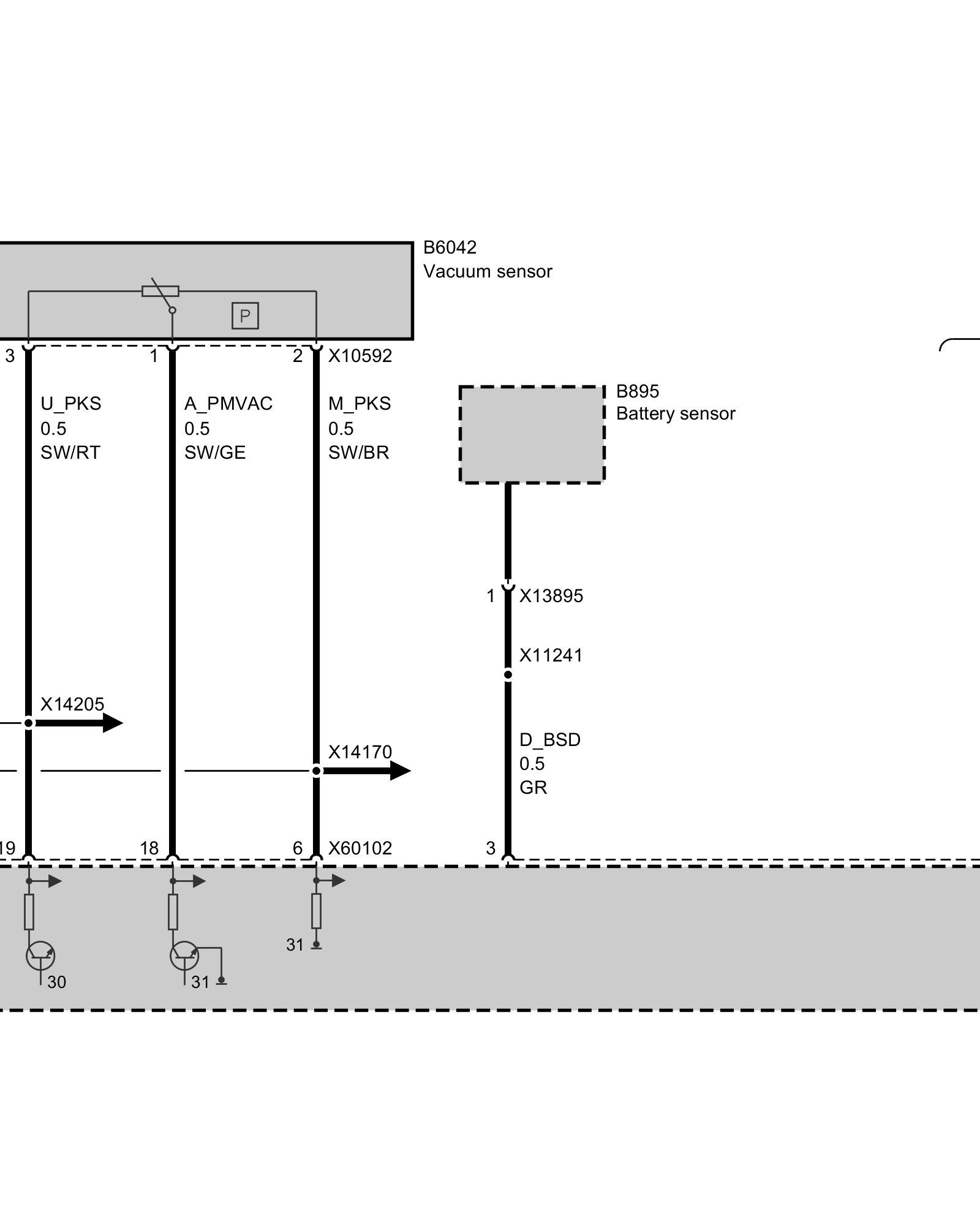

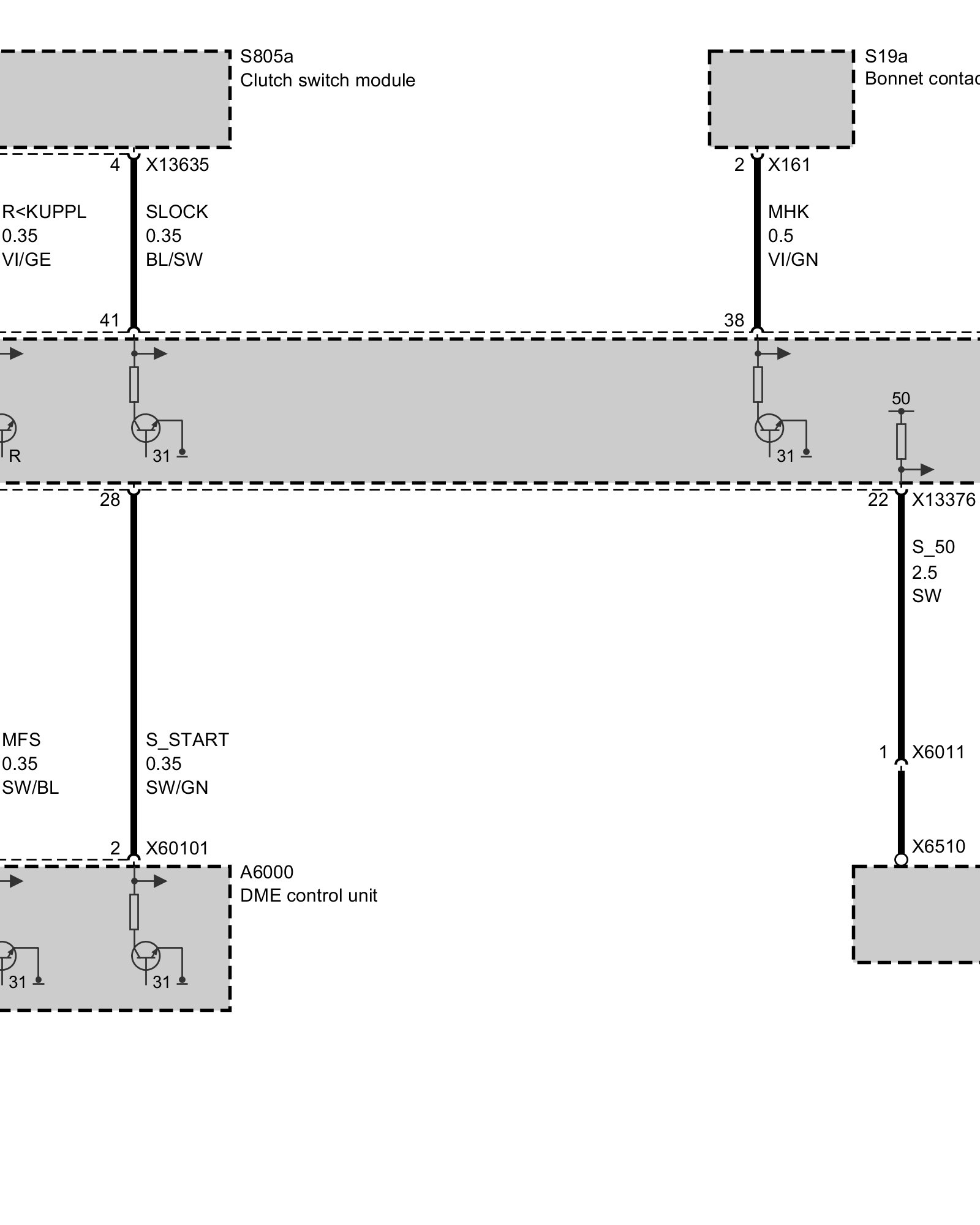

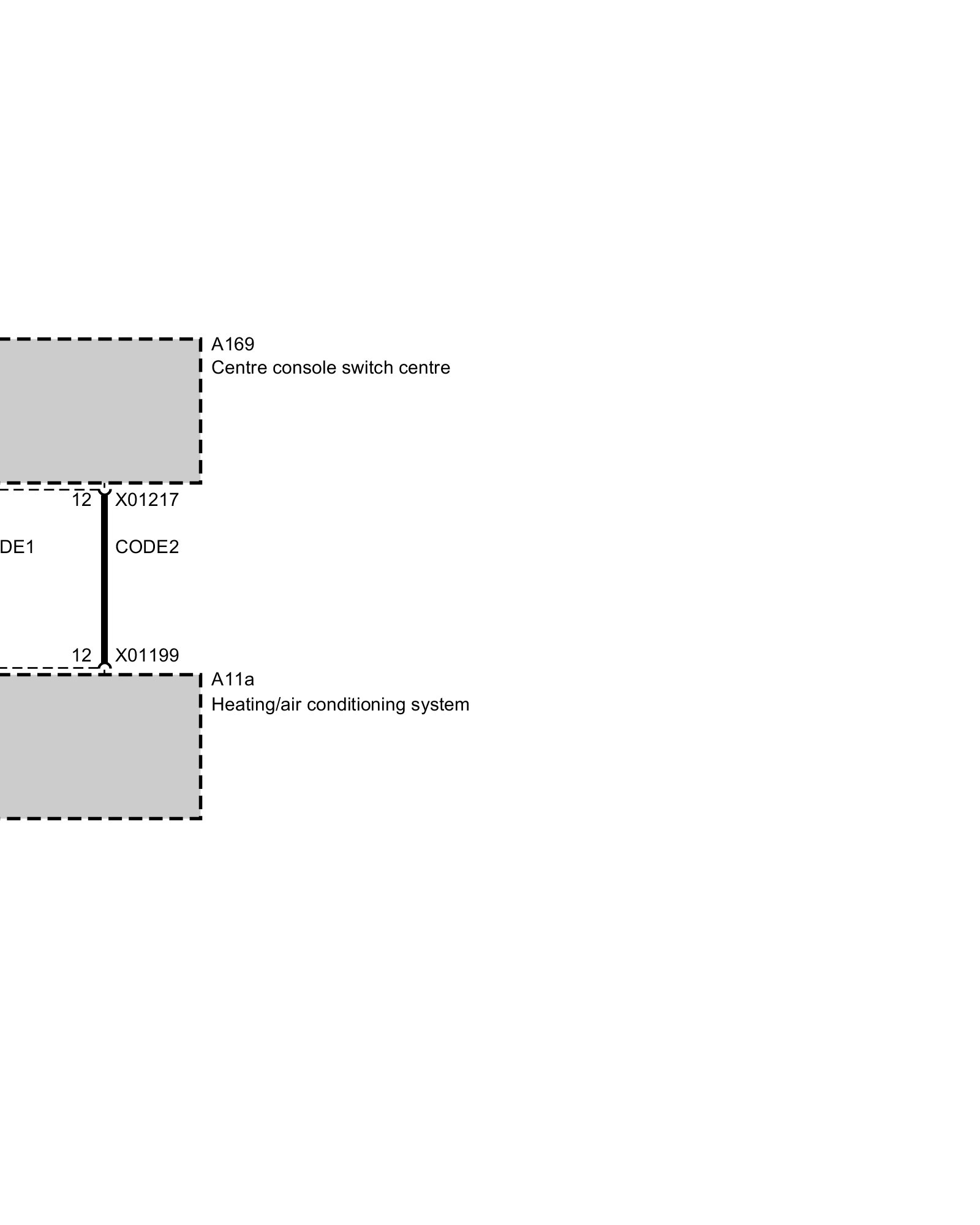

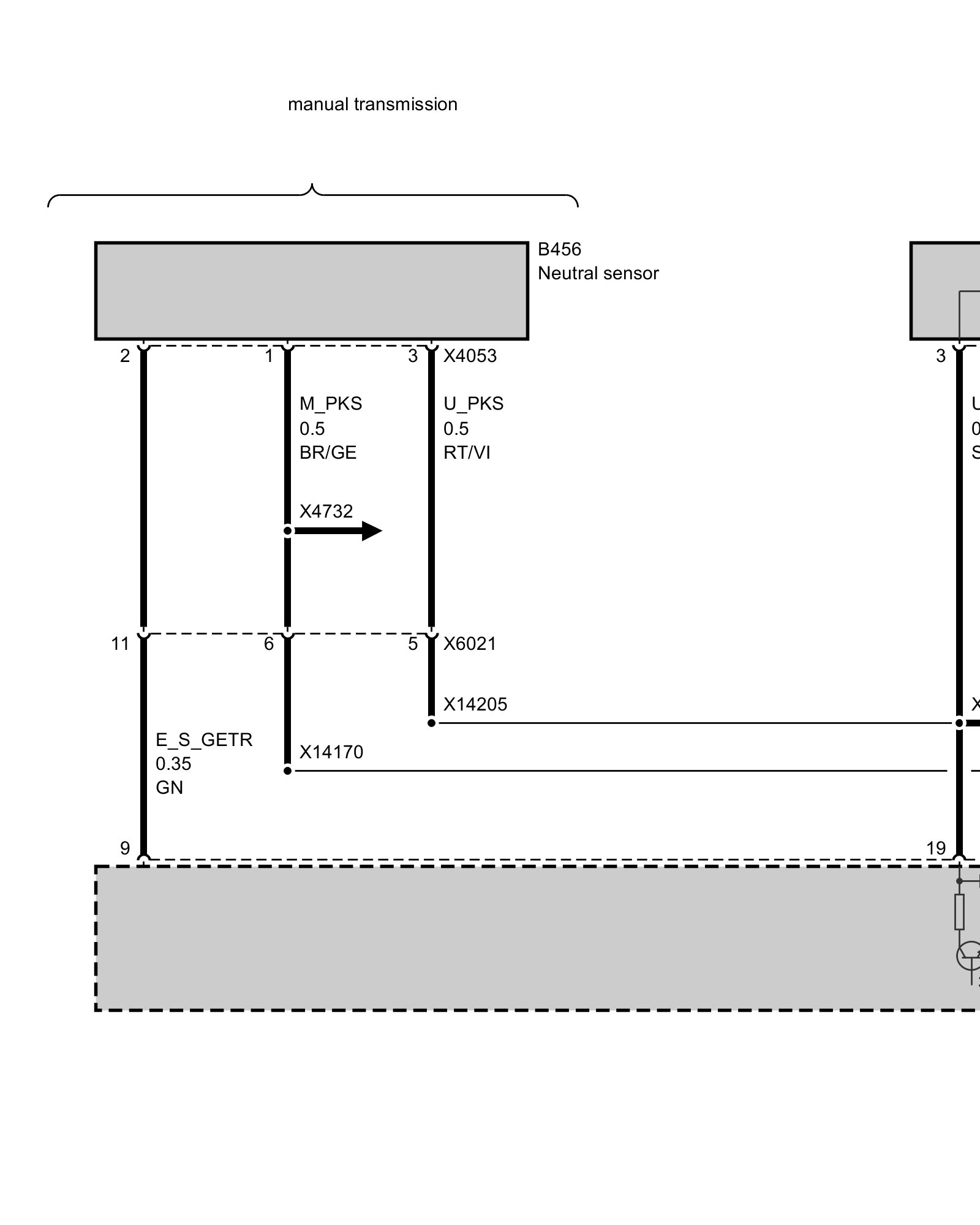

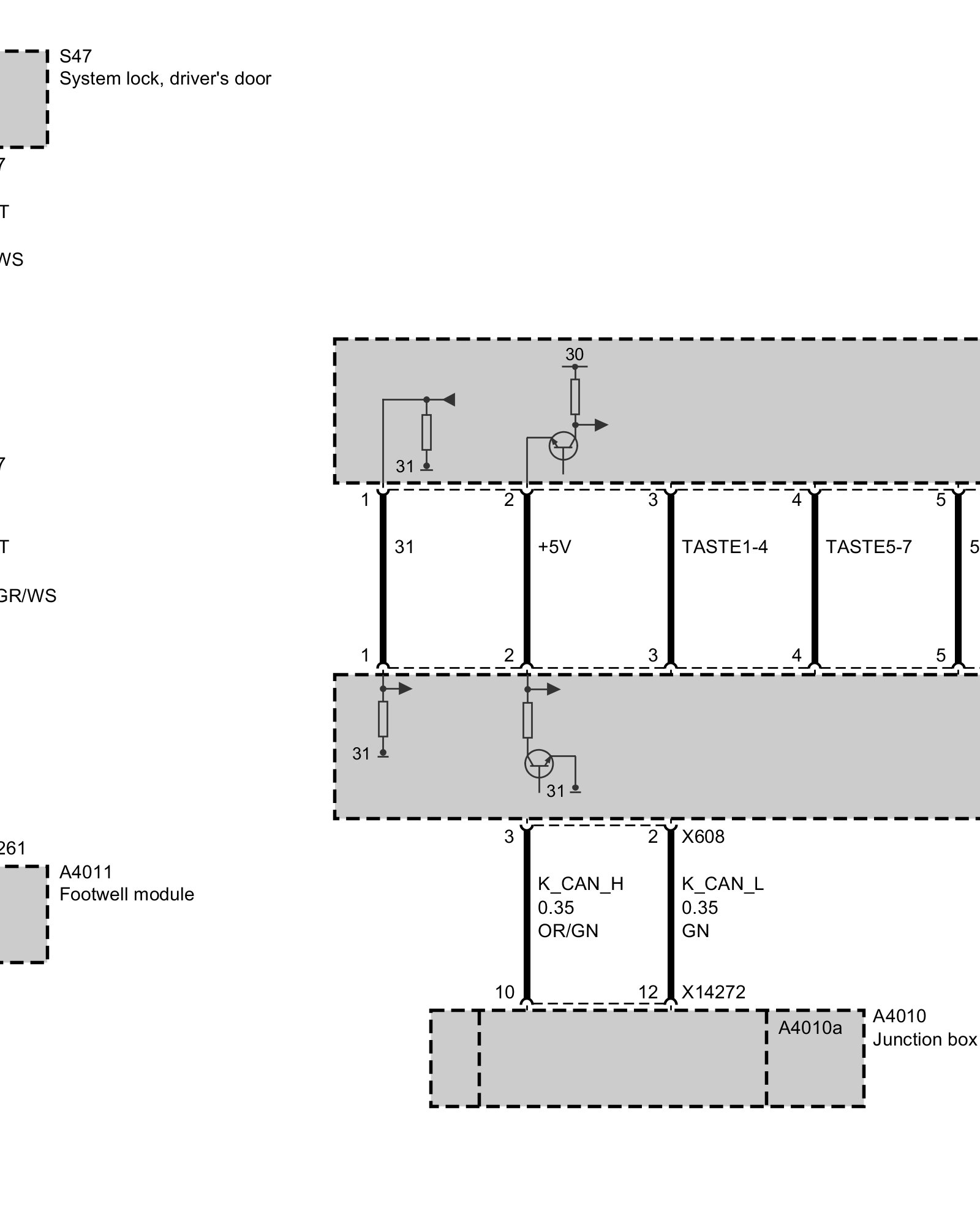

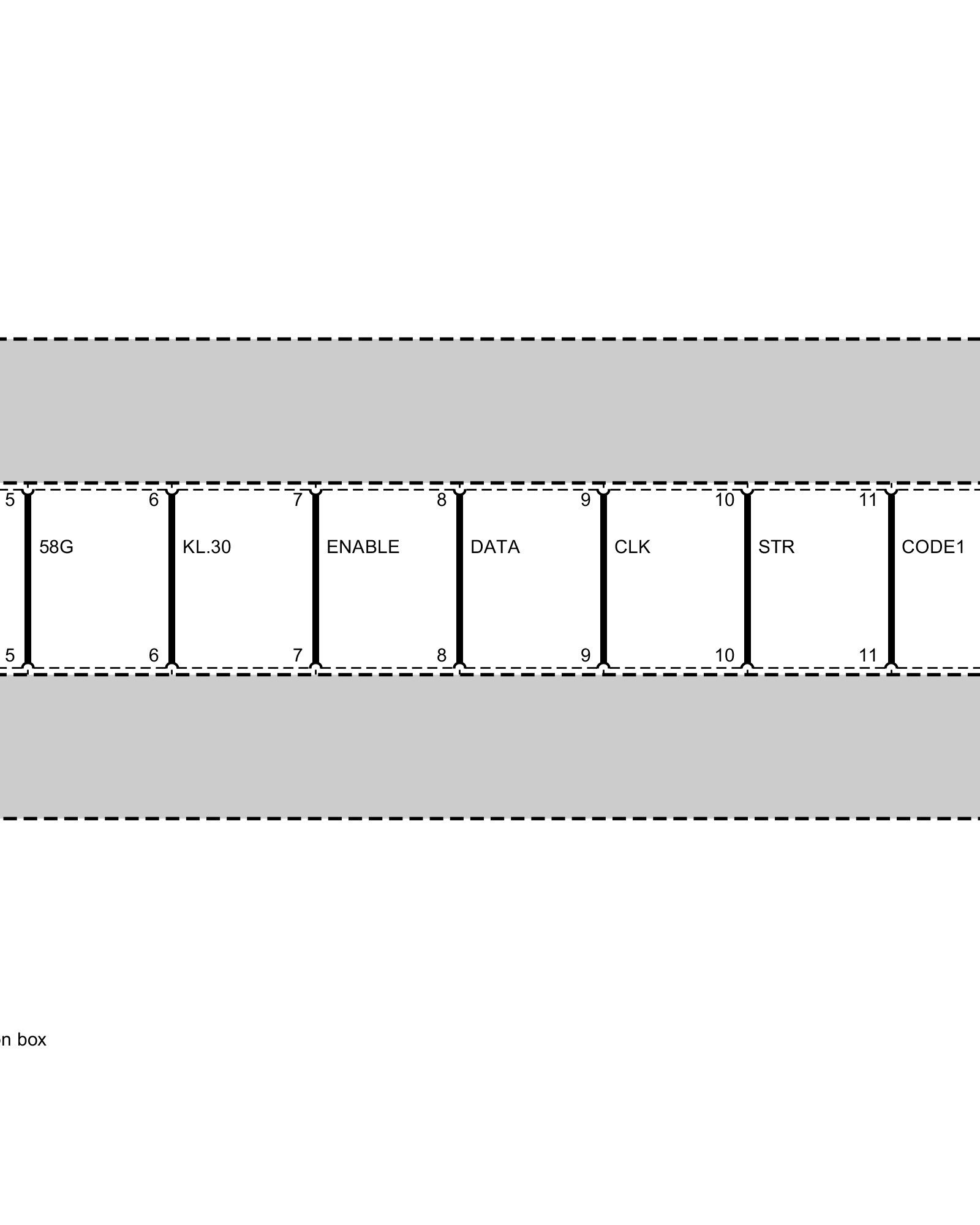

Automatic Engine Start-Stop (MSA Automatic Engine Start-Stop)



Automatic Engine Start-Stop
