Airbag Sensors (As of 03/06)
Airbag Sensors (As of 03/06)

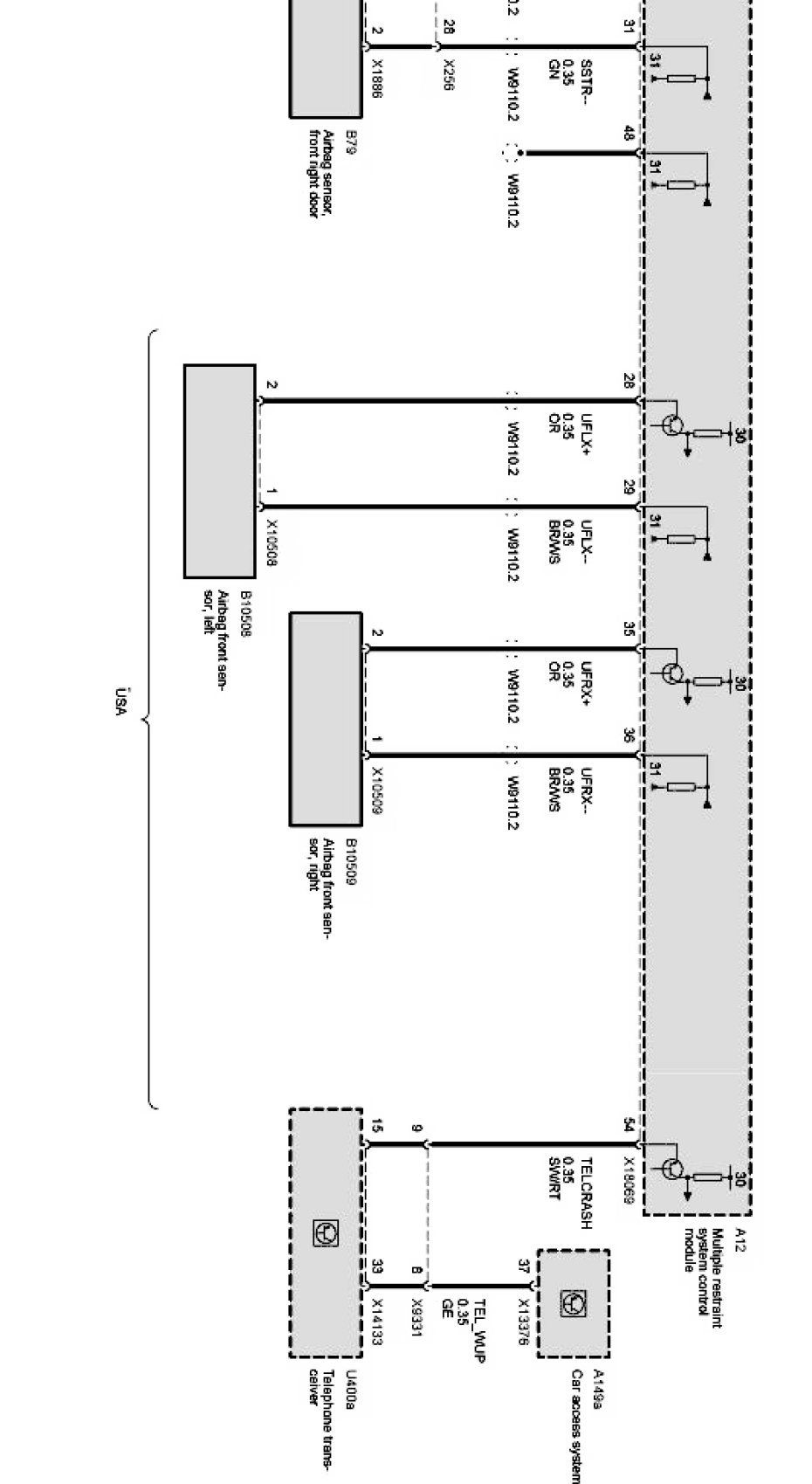

Airbag sensors Part 1:

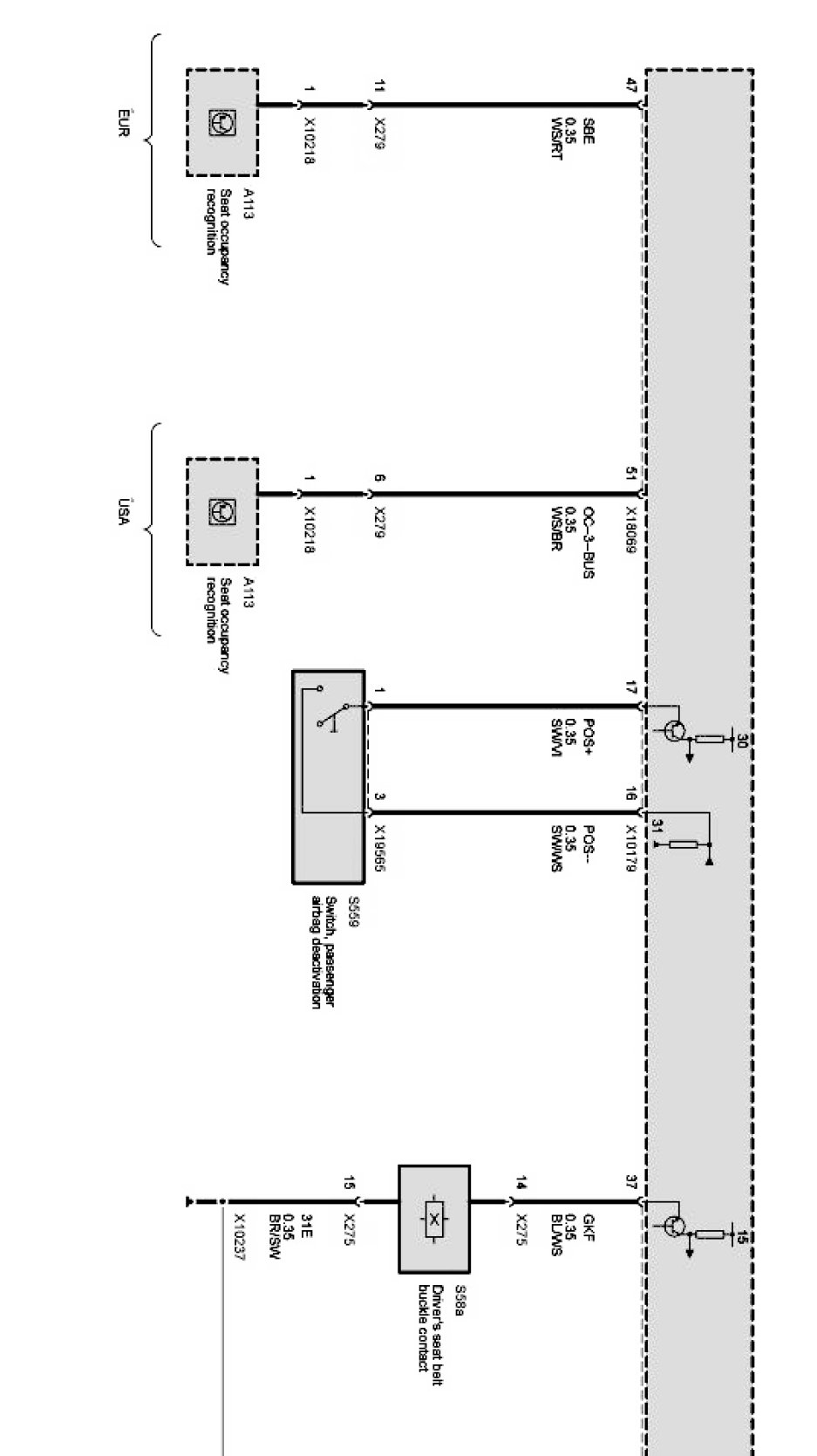

Airbag sensors Part 2:

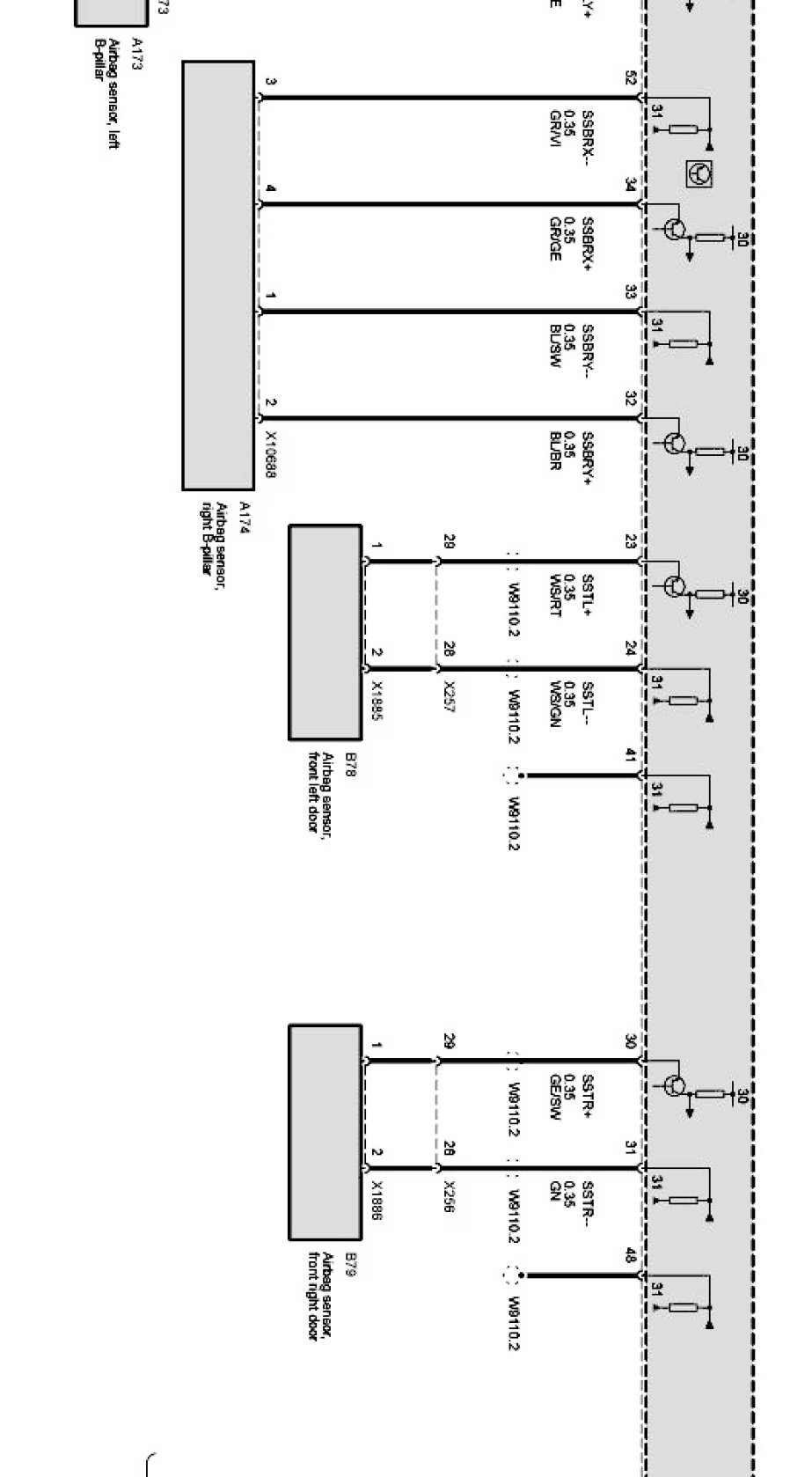

Airbag sensors Part 3:

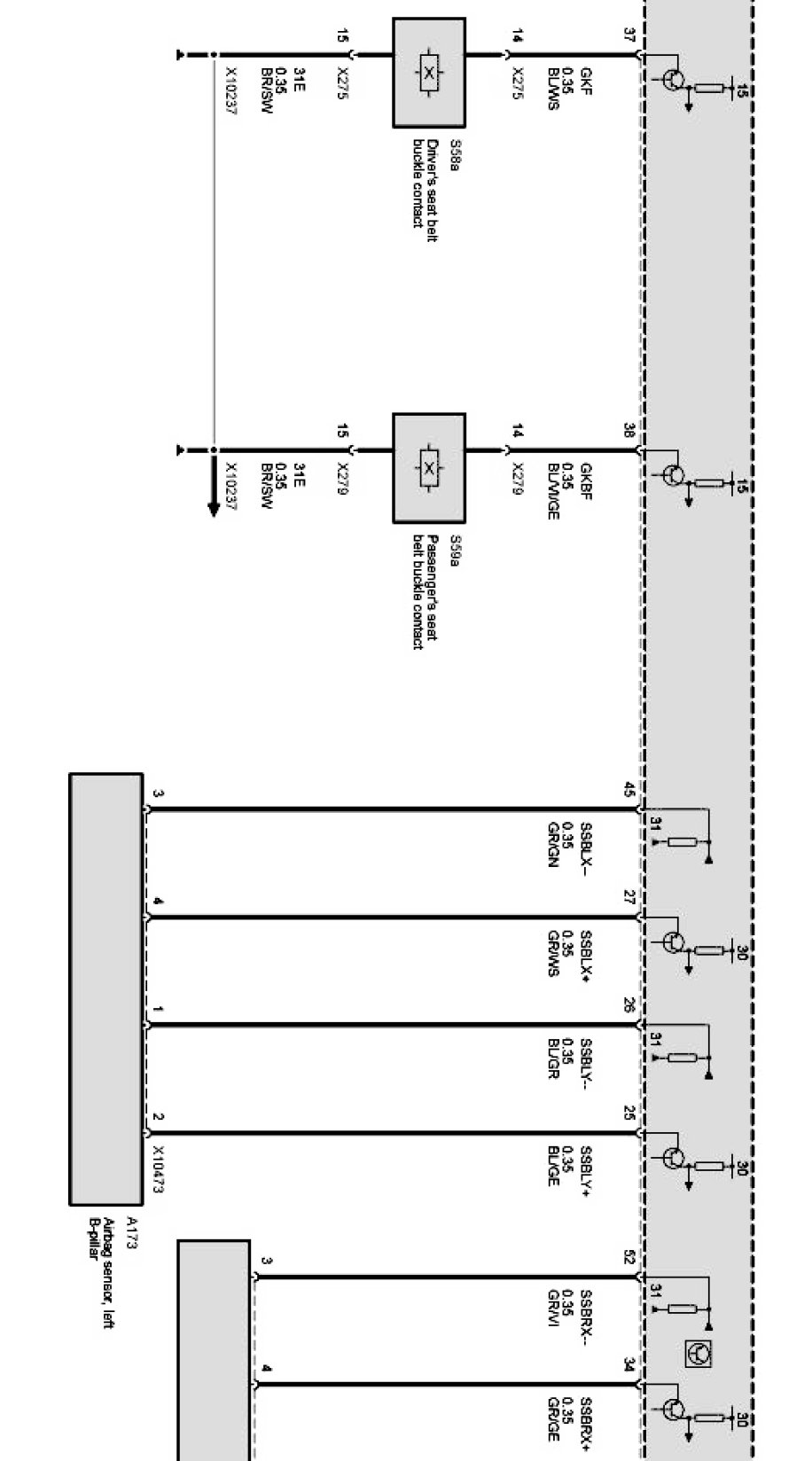

Airbag sensors Part 4:
