M3 Convertible (E93) V8-4.0L (S65)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatically Shifted Manual Transmission/Transaxle
>>

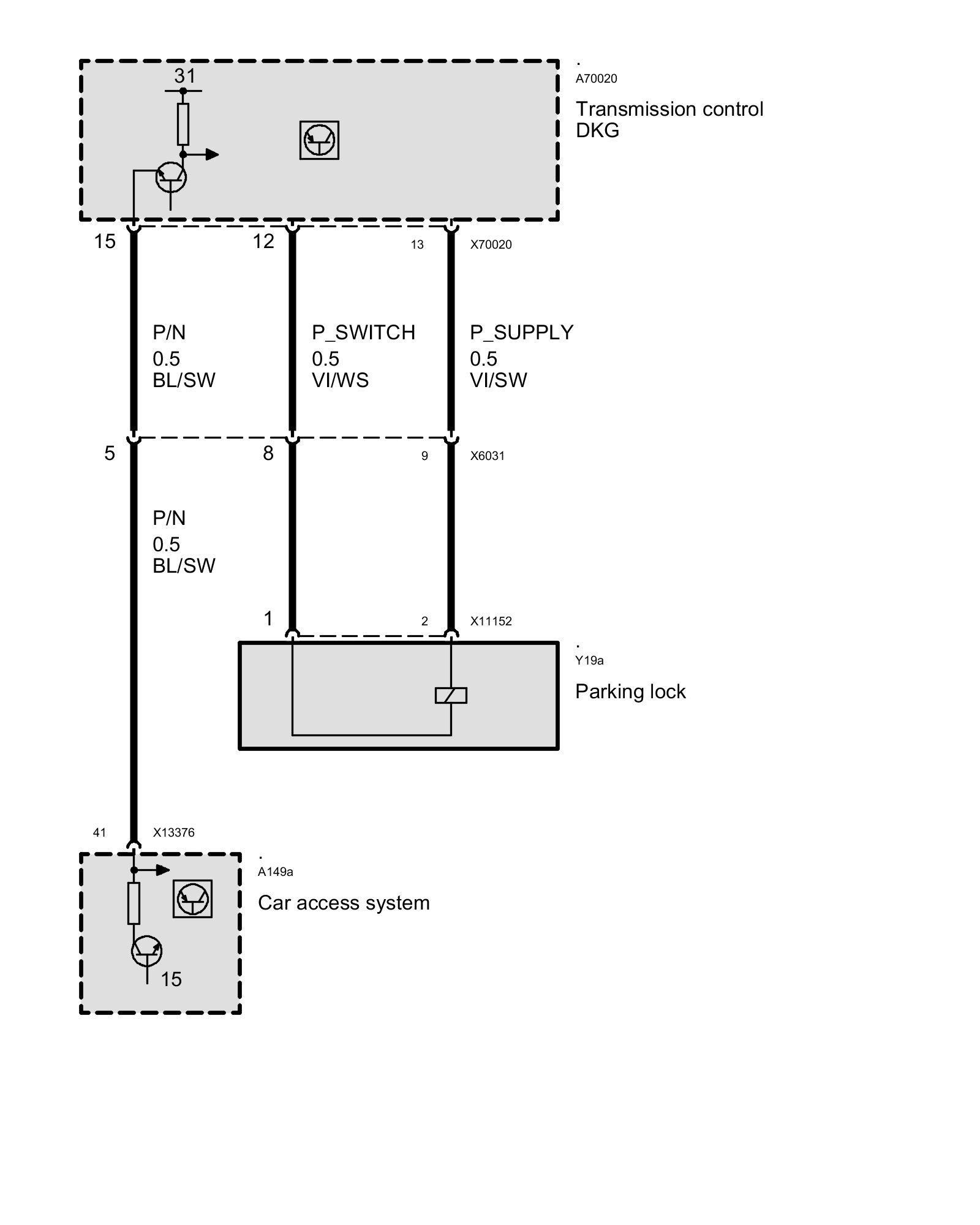

Parking Lock
Parking Lock
Parking Lock
