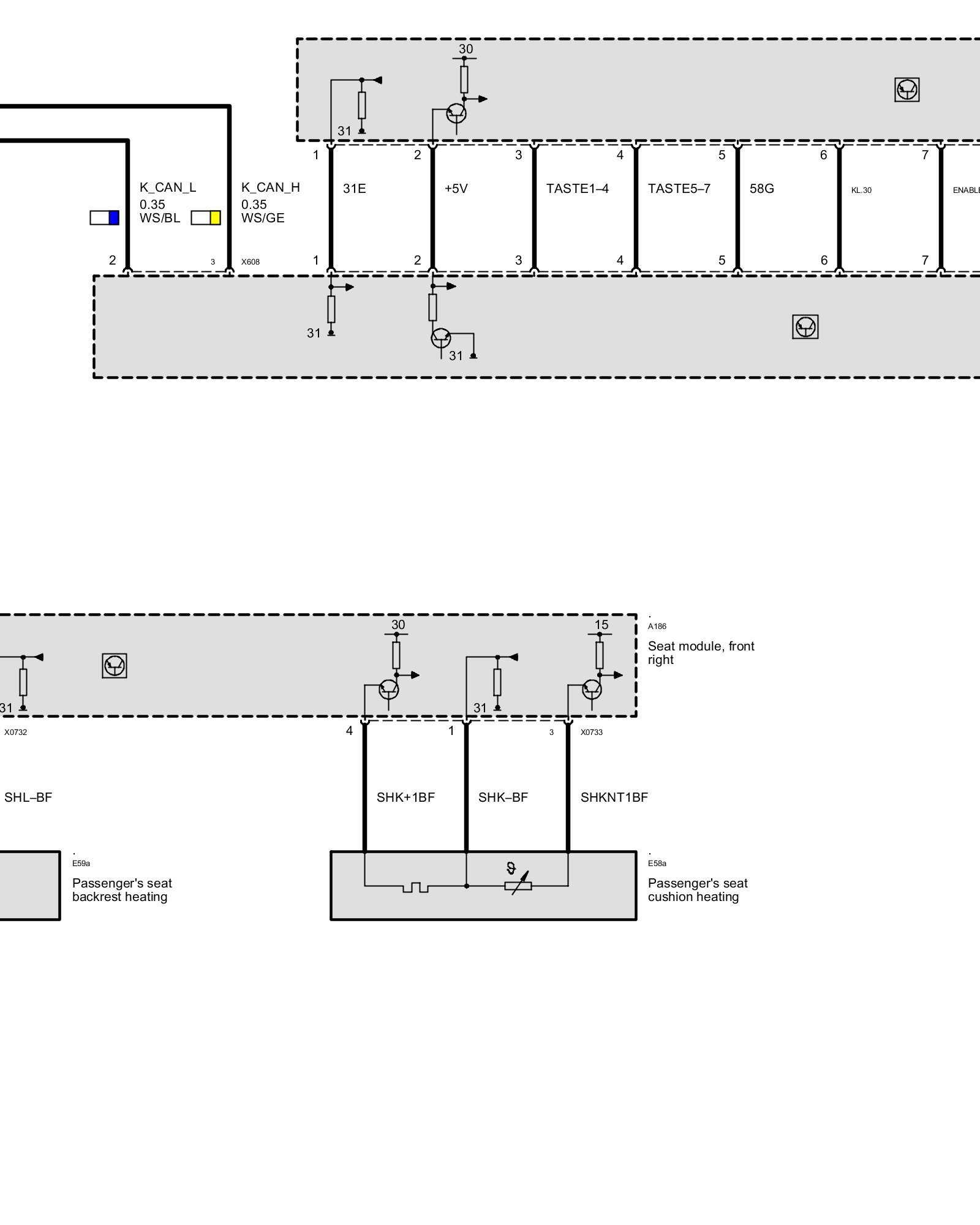

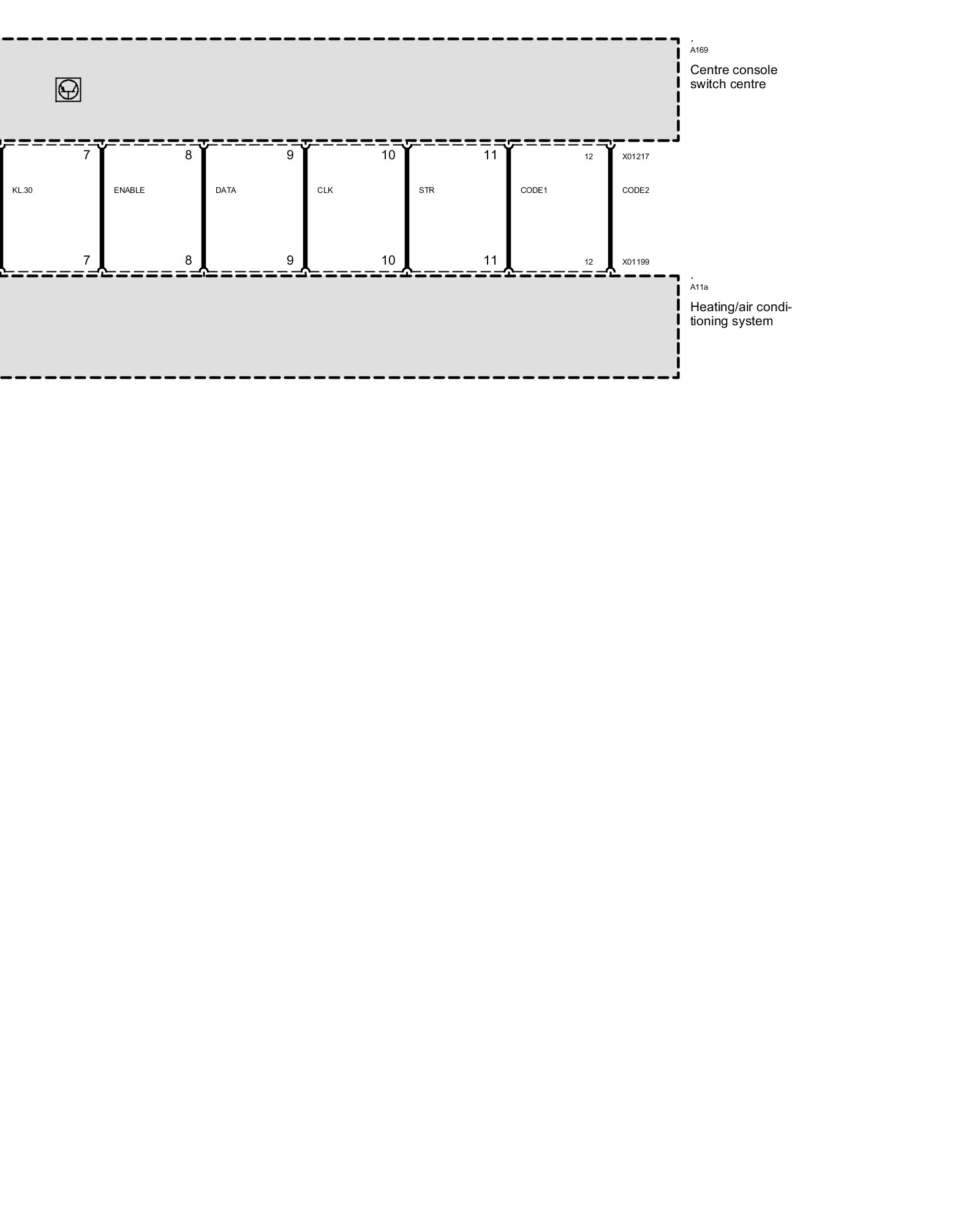

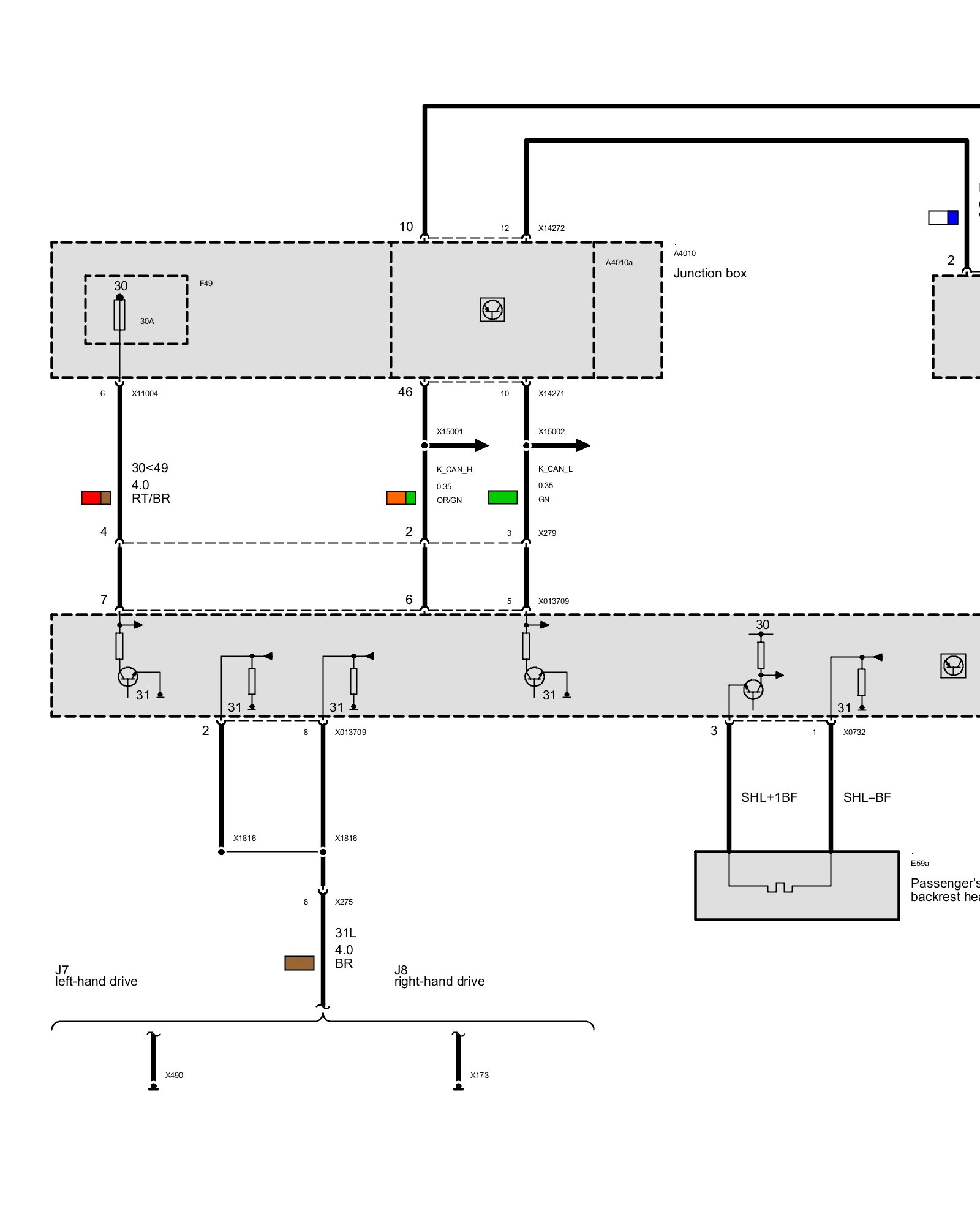

Passenger's Seat Heating (SMBF Seat Module, Passenger)
Passenger's Seat Heating (SMBF Seat Module, Passenger)
Passenger's Seat Heating
