31 10 010 Removing and installing/replacing reinforcement plate

31 10 010 - Removing and installing/replacing reinforcement plate (M3)





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform for raising the vehicle
Driving without reinforcement plate is not permitted!





Necessary preliminary tasks:
- Remove front underbody protection Removing and Installing/Replacing Front Underbody Protection

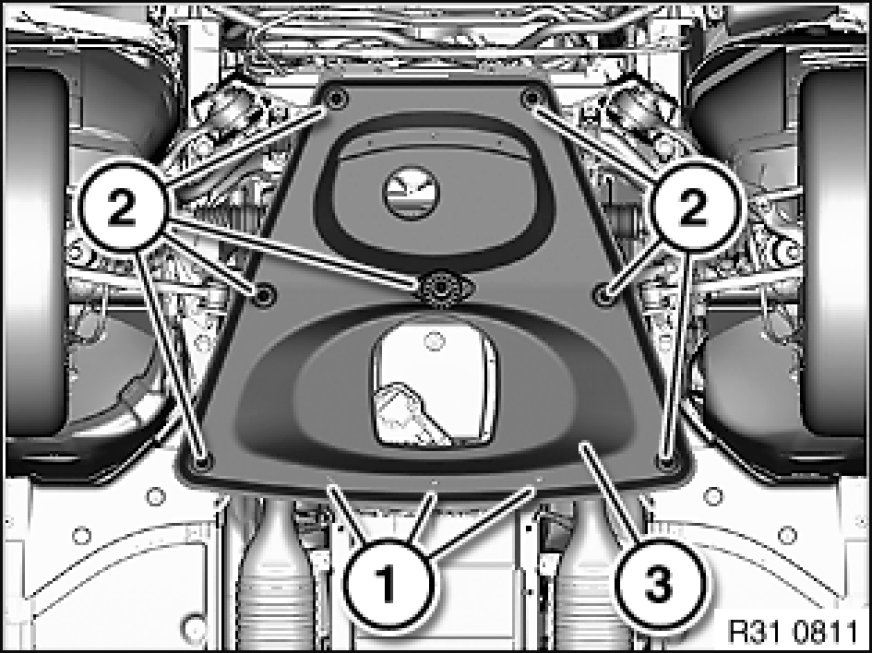

Release screws (1).
Release screws (2) and remove reinforcement plate (3).

Installation Note:
Replace screws (2).
Tightening torque 31 10 3AZ Front Axle Suspension.
