61 31 133 Removing and Installing/Replacing AV Connection Socket

61 31 133 - Removing and installing/replacing AV connection socket





Special tools required:






Necessary preliminary tasks:
- Remove rear console at rear 51 16 270 Removing and Installing/Replacing Rear Console





Important!
Wiring harness must not be damaged.

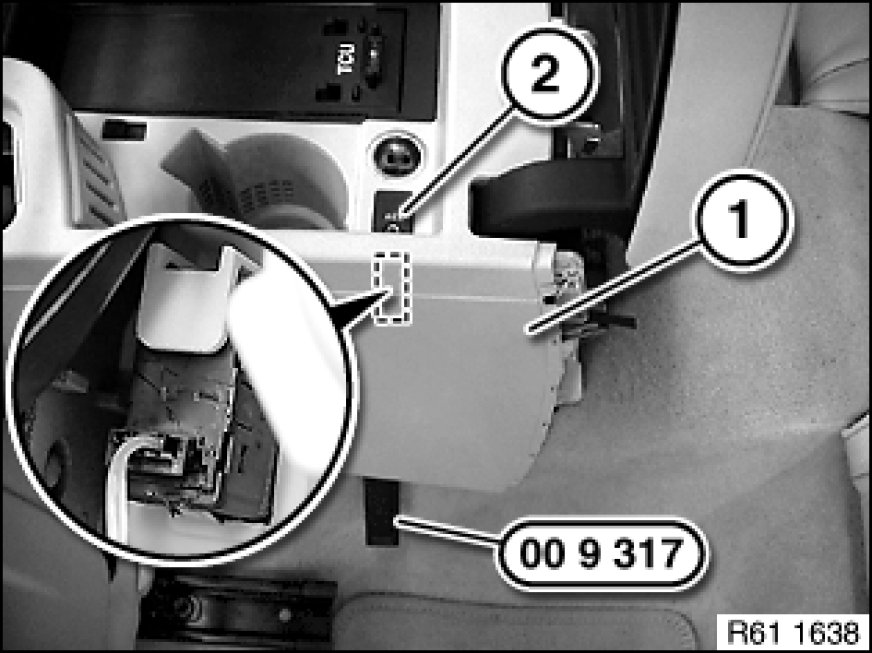

Slide special tool 00 9 317 under storage compartment (1) and press AV connection socket (2) upwards out of storage compartment (1).

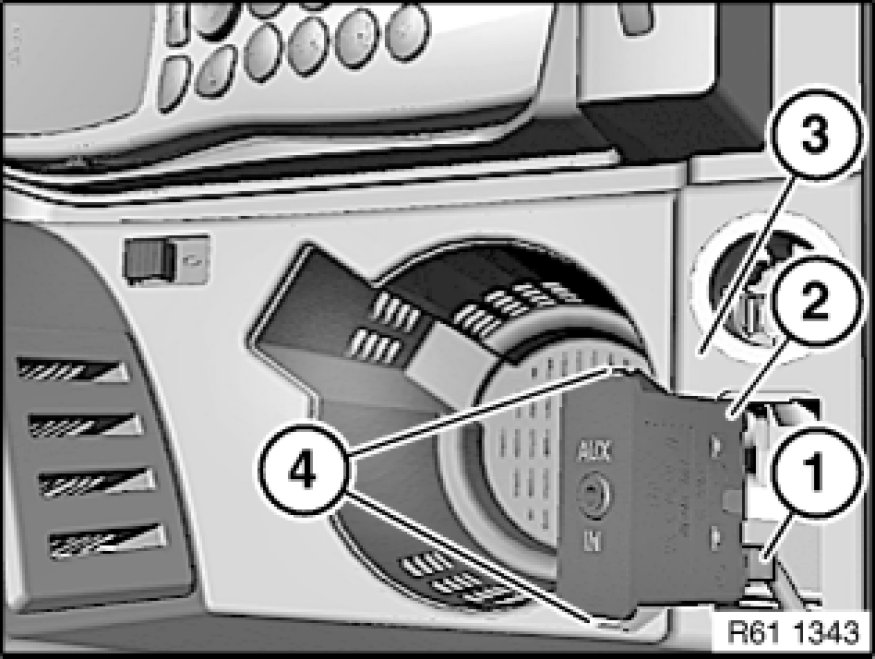

Feed AV connection socket (2) upwards out of storage compartment (3).
Disconnect plug connection (1) and remove AV connection socket (2).

Installation:
Locks (4) must not be damaged.
Make AV connection socket (2) is correctly seated in storage compartment (3).
