Antenna, TV: Service and Repair

65 20 160 - Removing and installing/replacing TV aerial





Necessary preliminary tasks:
- Remove luggage compartment trim on left side panel
- Remove rear bumper trim





Note:
The operation is described on the left side; proceed in the same way for the right side.

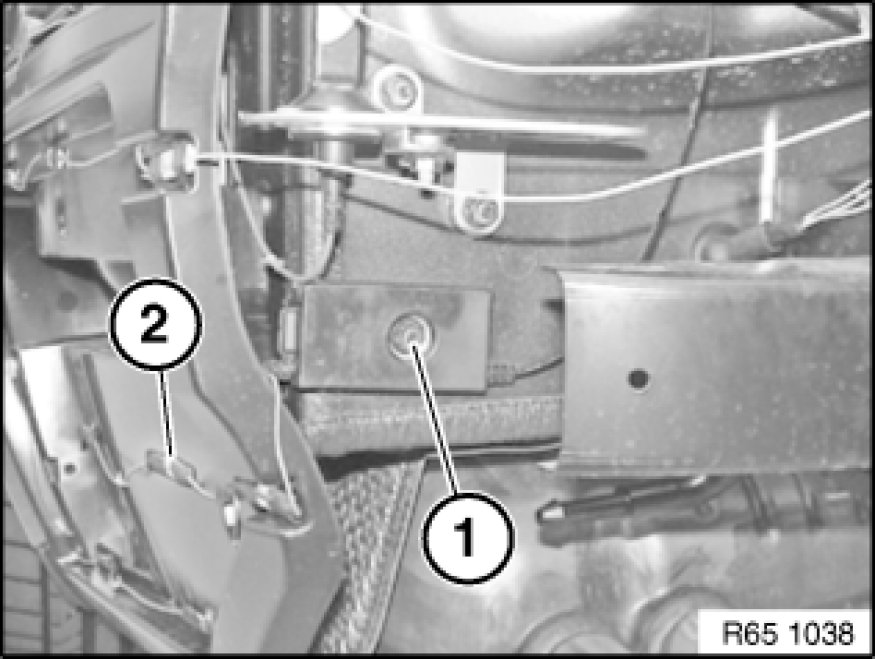

Release screw (1) and remove antenna.

Unclip antenna lead (2) on both sides completely.

Installation:
Ensure correct lead routing.
