26 12 011 Replacing Grooved Ball Bearing In Propeller Shaft Centre Bearing
26 12 011 Replacing grooved ball bearing in propeller shaft centre bearingSpecial tools required:
Necessary preliminary work:
^ Replace propeller shaft centre bearing

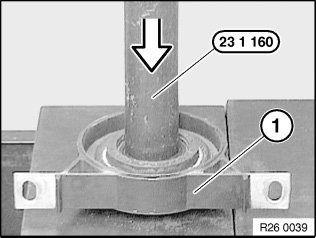

Press grooved ball bearing using special tool 23 1 160 out of centre mount (1).
Note:
Illustration shows E46.
Coat rubber-coated bearing seat of centre mount (2) with Circolight.
Circolight, refer to BMW Parts Department.

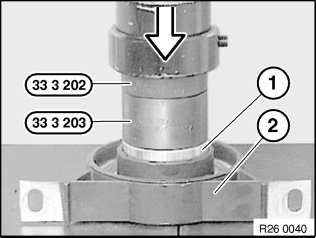

Use special tools 33 3 202/ 33 3 203 to press grooved ball bearing (1) into centre mount (2).
Note:
Illustration shows E46.
