72 11 071 Removing and Installing/Replacing Front Lower Strap Fitting (Belt Tensioner), Front Passenger Seat

72 11 071 Removing And Installing/replacing Front Lower Strap Fitting (belt Tensioner), Front Passenger Seat







Necessary preliminary work:
- Remove front passenger seat







Installation note:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of hardening)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

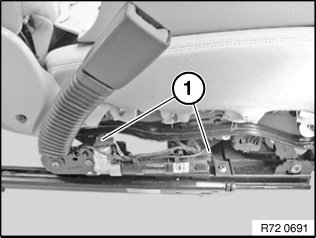

Unlock and disconnect plug connections (1).







Release screw (1).

Installation note:
Replace screw (1).

Tightening torque 72 11 03AZ.
Remove seat belt tensioner.

Installation note:
Belt tensioner is coded against incorrect assembly.
