22 11 110 Replacing Left Engine Support Arm

22 11 110 Replacing left engine support arm (N63)





Necessary preliminary work:
- Secure engine in installation position.
- Lower front axle support (left-hand drive models only)

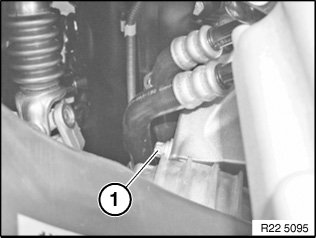

Release screw (1).

Important!
Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ.

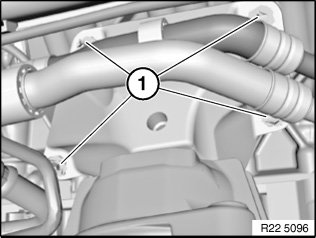

Release screws (1).

Remove engine support arm.

Tightening torque 22 11 3AZ.

��:
