22 11 011 Replacing Left Engine Mount

22 11 011 Replacing left engine mount (N63)





Necessary preliminary work:
^ Secure engine in installation position.
^ Remove rear underbody protection.
^ Lower front axle support.

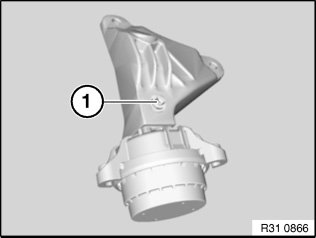

Release bolt (1) and remove engine mount.

Important!
Installation note:
To ensure play between engine mount and engine support arm, lower the engine completely before tightening the screw connection (engine mount/engine support arm).
Tightening torque 22 11 2AZ.





Installation note:

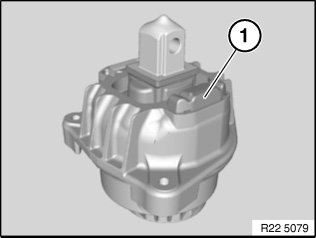

Rubber part (1) of engine mount must point to center of vehicle.

��:
