51 72 010 Replacing Mucket For Left Or Right Rear Door

51 72 010 - Replacing mucket for left or right rear door





Necessary preliminary tasks:
- Remove trim on C-pillar at bottom Pillar Trim Panel
- Remove lower B pillar trim Removing and Installing/Replacing Trim for Left or Right Door Pillar (Bottom)

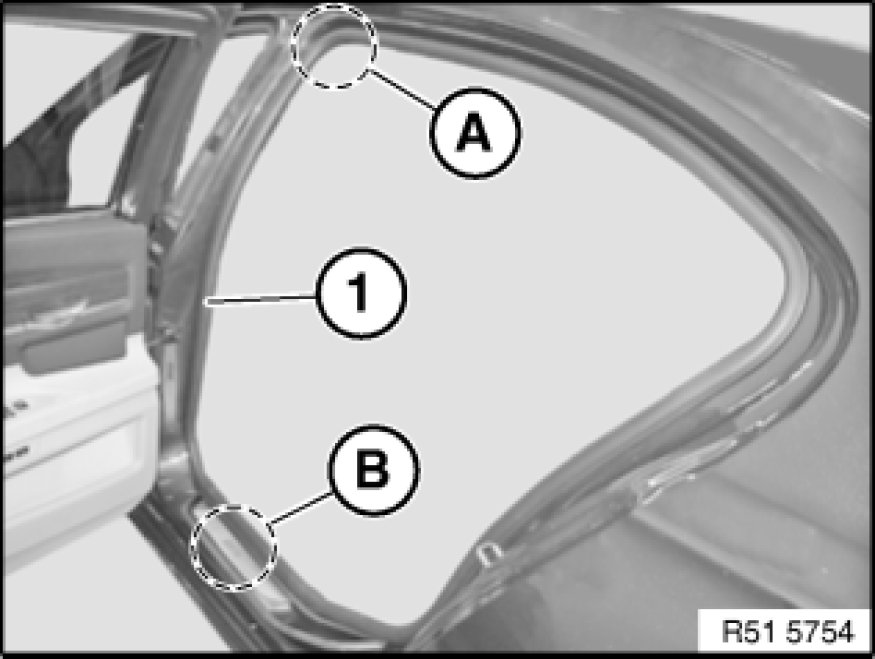

Detach mucket (1).

Installation:
Attach mucket (1) starting in area "A".
When installed, the location of joint of mucket (1) must be in area "B".
Pull off mounting cord starting in area "B".
