Air Cleaner Fresh Air Duct/Hose: Service and Repair

13 .. ... Removing Intake Duct (N63)







Necessary preliminary tasks:
- Remove tension struts on left and right

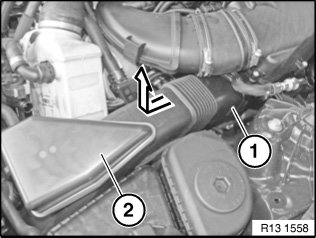

Picture describes the left side, the procedure for the right side is identical.
Press in catch (1).
Feed out intake duct (2) towards top.







Press in catch (1).
Detach intake duct (2) towards rear and remove.
