65 50 165 Removing and Installing/Replacing Trim For Rear Monitor Display At Rear

65 50 165 Removing And Installing/Replacing Trim For Rear Monitor Display At Rear







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove rear monitor

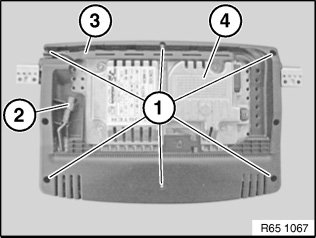

Release screws (1).
Tightening torque 65 50 1AZ.
Remove cover (3) from rear monitor (4), unclipping plug (2) and feed out cable.

Installation note:
Make sure cover (3) is correctly seated on rear monitor (4).
