65 50 160 Removing and Installing/Replacing Trim For Rear Cabin Monitor Display At Front and Rear

65 50 160 Removing And Installing/Replacing Cover For Rear Passenger Compartment Monitor At Front







IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection).







Necessary preliminary work:
- Remove cover for rear passenger compartment monitor at rear







IMPORTANT: Do not damage or scratch display.

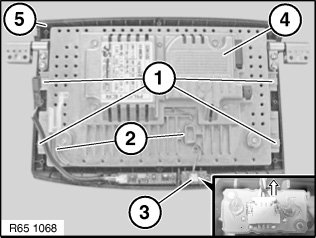

Release screws (1).
Tightening torque 65 50 1AZ.
Carefully disconnect plug connection (3).
Remove rear passenger compartment monitor (4) from cover (5).

Installation note:
Ensure correct cable routing in guides (2).
Make sure cover (5) is correctly seated on rear passenger compartment monitor (4).
