31 35 000 Removing and Installing/Replacing Front Stabilizer

31 35 000 Removing and installing/replacing front stabilizer





Necessary preliminary tasks:
^ Remove front underbody protection
^ Remove both stabilizer links from stabilizer

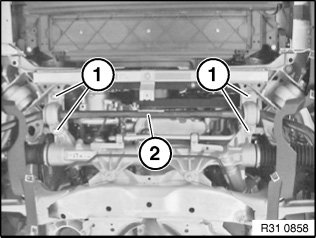

Release screws (1).

Remove both retaining brackets of stabilizer (2).

Tightening torque 31 35 1AZ.





Installation:
Replace screws.

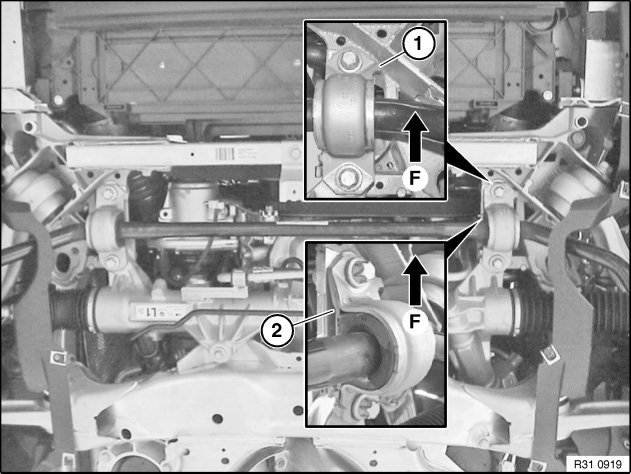

Pay attention to installation location of retaining bracket and mounting plate!
^ Nose (1) on retaining bracket must point left in direction of travel
^ Curve (2) on lower mounting plate points to rubber bearing
