61 12 002 Replacing Battery Positive Lead (from Battery to Luggage Compartment Connector)
61 12 002 Replacing Positive Battery Cable (From Battery To Luggage Compartment Cable Connector)
WARNING: Observe safety instructions for handling vehicle battery.
Necessary preliminary tasks:
- Disconnect battery earth lead
- Remove front spare wheel well trim panel only with F07
- Remove luggage compartment floor trim panel only with F11

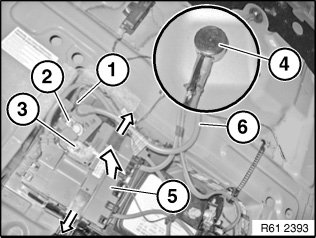

If necessary, unlock and disconnect plug connection (1) of safety battery terminal lead.
IMPORTANT: Do not under any circumstances pull/lever off safety battery terminal (1) by force.
Loosen nut (2).
Tightening torque 61 21 1AZ.
Unscrew nut (3).
Tightening torque 61 21 2AZ.
Open cap (4) and release nut underneath.
Tightening torque 61 21 4AZ.
Unclip locking brackets from power distribution box (5) in direction of arrow.
Raise power distribution box (5) in direction of arrow and remove positive battery cable (6).
