72 11 295 Removing and Installing (Replacing) Rear Right Side Window

72 11 295 Removing And Installing (replacing) Rear Right Side Window







Necessary preliminary tasks:
- Remove left rear seat







Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use







Detach cover (1).

Release screw (2).

Tightening torque 52 26 08AZ.

Pull folding cover forward and lift up to remove.

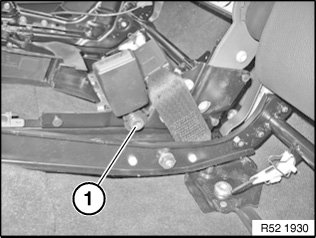

Release screw (1).

Installation:
Replace screw (1).

Tightening torque 72 11 22AZ.

Remove seat belt buckle.

Installation:
Seat belt buckle is coded to prevent incorrect installation.
