72 11 294 Removing and Installing/Replacing Lower Belt (Seat Belt Buckle), Rear Left

72 11 294 Removing And Installing/replacing Lower Belt (seat Belt Buckle), Rear Left







Necessary preliminary tasks:
- Remove left rear seat







Installation:
- Microencapsulated screws (Loctite) must be replaced and may not be reused
- Screw connection must be completed within 20 minutes (start of curing)
- Microencapsulated screws must not be retightened
- Clean thread of nut beforehand in event of repeated use

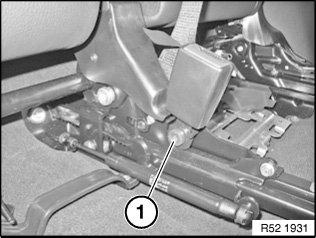

Release screw (1).

Installation:
Replace screw (1).

Tightening torque 72 11 22AZ .

Remove seat belt buckle.

Installation:
Seat belt buckle is coded to prevent incorrect installation.
