72 11 101 Removing and Installing/Replacing Rear Centre Seat Belt

72 11 101 Removing And Installing/replacing Rear Centre Seat Belt







Necessary preliminary tasks:
- Remove left rear seat
- Remove left backrest cover

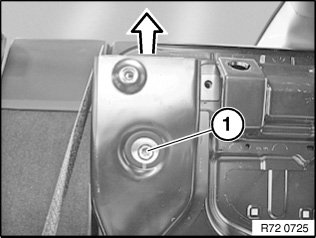

Release screw (1).

Tightening torque 72 11 21AZ .

Installation:

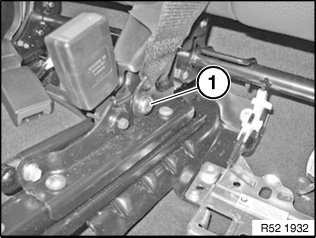

End fitting is coded against incorrect assembly.

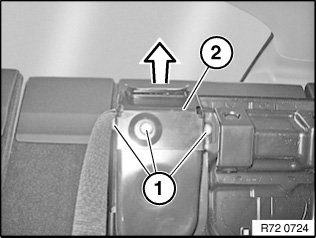

Release screws (1).

Remove cover (2).







Release screw (1).

Tightening torque 72 11 20AZ .

Remove automatic reel with anchor fitting.

Installation:
Automatic reel is coded against incorrect installation.
