63 99 145 Replacing Bulb For Front Left Side Light / Daytime Driving Lights (Xenon Headlight) (LED Module)



63 99 145 Replacing Bulb For Front Left Side Light / Daytime Driving Lights (Xenon Headlight) (LED Module)







WARNING: Follow instructions for handling light bulbs (exterior lights).







Necessary preliminary tasks:
- Remove left headlight

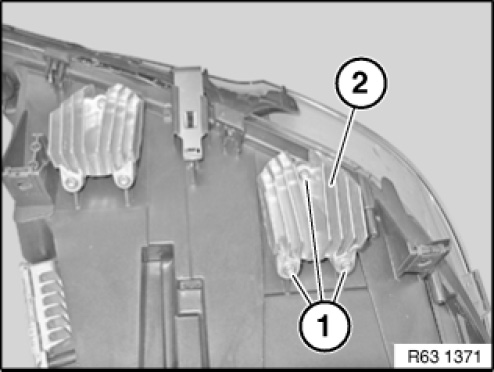

Release screws (1).
Lift out LED module (2).

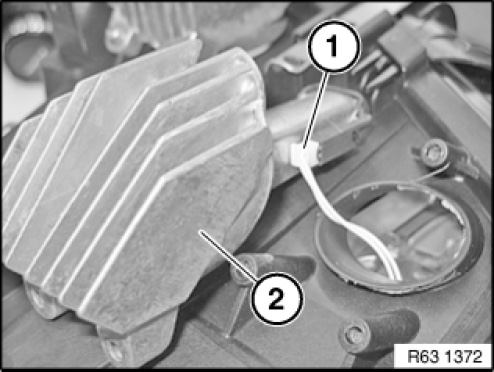

Disconnect plug connection (1).
Remove LED module (2).

Installation note:
Always replace LED modules (2) as a pair.
Replace seal for LED module (2).
Make sure LED module (2) is correctly seated.
Note bulb type.
