67 31 520 Removing and Installing/Replacing Drive Unit For Seat Height Adjustment

67 31 520 Removing And Installing/replacing Drive Unit For Seat Height Adjustment







Necessary preliminary tasks:
- Remover driver's or passenger seat







Set down front seat sideways on a suitable surface.

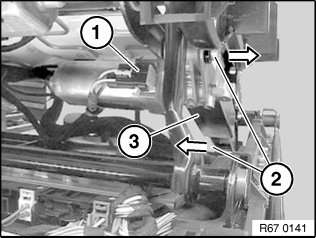

Disconnect plug connection (1).

Unfasten screws (2).

Tightening torque 67 31 1AZ .

Feed out drive unit for seat height adjustment (3) and remove.







Installation:
Fit drive unit for seat height adjustment (1) with plastic clip (2) only.
Make sure plastic clip (2) is correctly seated.







NOTE:
- Carry out function check with adapter cable







Replacement:
Initialise drive unit for seat height adjustment.
